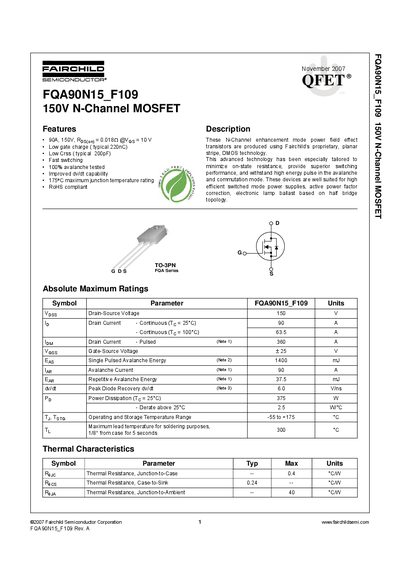

Fairchild FQA90N15_F109 N-Channel MOSFET Datasheet
The document describes the Fairchild FQA90N15_F109, an N-Channel enhancement mode power MOSFET produced using proprietary planar stripe DMOS technology. Key features include low gate charge (typical 220nC), low Crss (typical 200pF), and fast switching capabilities suitable for high-efficiency switched-mode power supplies.
Read onlineFairchild FQA90N15 specifications
| Drain-Source Voltage | 150 V |
|---|---|
| Continuous Drain Current (25°C) | 90 A |
| Pulsed Drain Current | 360 A |
| Gate-Source Voltage | +25 V |
| Single Pulsed Avalanche Energy | 1400 mJ |
| Power Dissipation (Tc = 25°C) | 375 W |
| Operating Temperature Range | -55 to +175 °C |
| Package Type | TO-3PN |
All Fairchild FQA90N15 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum junction temperature rating?
The device has a maximum junction temperature rating of 175°C.
Is this product RoHS compliant?
Yes, the FQA90N15_F109 is RoHS compliant.
What are the available packages for the FQH90N15/FQA90N15?
The devices are available in TO-247 and TO-3PN packages.
From: Fairchild Semiconductor FQH90N15/FQA90N15 N-Channel Power MOSFET Datasheet
What is the maximum junction temperature rating?
The maximum junction temperature rating is 175°C.
From: Fairchild Semiconductor FQH90N15/FQA90N15 N-Channel Power MOSFET Datasheet
