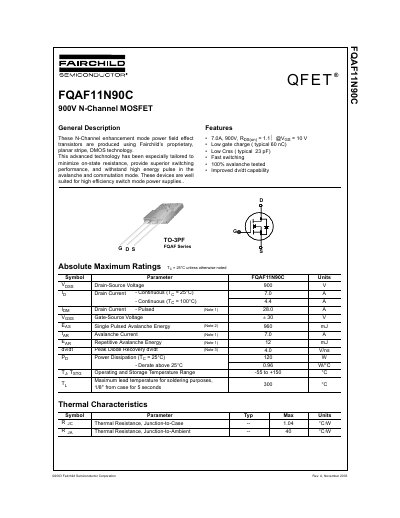

Fairchild Semiconductor FQAF11N90C 900V N-Channel MOSFET Datasheet
This document provides the design specifications for the FQAF11N90C, a 900V N-Channel enhancement mode power field effect transistor produced using Fairchild's proprietary planar stripe, DMOS technology. The device is designed to minimize on-state resistance and provide superior switching performance for high efficiency switch mode power supplies.
Read onlineFairchild FQAF11N90C specifications
| Drain-Source Voltage | 900 V |
|---|---|
| Continuous Drain Current (Tj = 25°C) | 7.0 A |
| Continuous Drain Current (Tj = 100°C) | 4.4 A |
| Power Dissipation (Tg = 25°C) | 120 W |
| Operating and Storage Temperature Range | -55 to +150 °C |
Source: Fairchild Semiconductor FQAF11N90C 900V N-Channel MOSFET Datasheet
All Fairchild FQAF11N90C documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the continuous drain current ratings at different temperatures?
The device supports a continuous drain current of 7.0 A at 25°C and 4.4 A at 100°C.
From: Fairchild Semiconductor FQAF11N90C 900V N-Channel MOSFET Datasheet
What is the maximum single pulsed avalanche energy?
The device can withstand a single pulsed avalanche energy of 960 mJ.
From: Fairchild Semiconductor FQAF11N90C 900V N-Channel MOSFET Datasheet
What is the maximum drain‑source voltage rating?
The FQAF11N90C is rated for a maximum drain‑source voltage of 900 V.
How much continuous drain current can the device handle at 25 °C?
It can conduct up to 7.0 A continuously at a case temperature of 25 °C.
