Start here

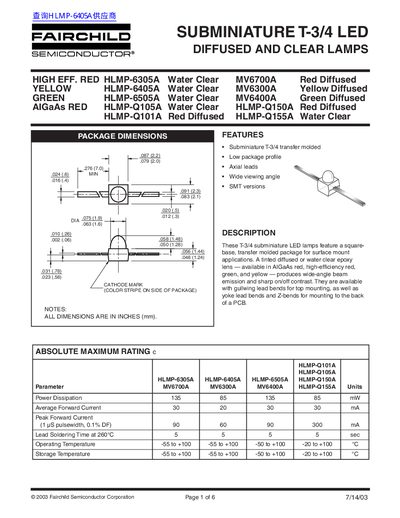

Fairchild Subminiature T-3/4 LED Datasheet
The Subminiature T-3/4 LED family includes high‑efficiency red, yellow, green and AlGaAs red devices offered in both diffused and water‑clear epoxy lenses. The lamps are supplied in a square‑base, transfer‑molded package with axial leads and are available in gullwing, yoke and Z‑bend lead configurations for surface‑mount applications.
The document lists electrical and optical parameters such as forward voltage, luminous intensity, peak wavelength and viewing angle, and provides recommended PCB trace patterns, reflow soldering profiles, and handling guidelines for automated placement equipment.
Fairchild 4 LED specifications
| Operating Temperature | -40 to +100 °C |
|---|---|
| Storage Temperature | -40 to +100 °C |
| Continuous Forward Current | 30 mA |
| Peak Forward Current | 200 mA |
| Reverse Voltage | 5 V |
| Power Dissipation | 100 mW |
| Typical Luminous Intensity (MV8803) | 940 mcd |
| Typical Forward Voltage (MV8803) | 2.1 V |
| Peak Wavelength | 630 nm |
| Viewing Angle | 20° |
| Lead Spacing | 0.100 in (2.54 mm) |
Source: Fairchild SUPER BRIGHT T-1 3/4 LED Lamp Water Clear Datasheet
All Fairchild 4 LED documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What lead configurations are available?
The lamps are offered in gullwing, yoke, and Z‑bend lead forms.
What is the continuous forward current rating?
The continuous forward current is rated at 30 mA.
From: Fairchild SUPER BRIGHT T-1 3/4 LED Lamp Water Clear Datasheet
What is the peak forward current rating?
The peak forward current is rated at 200 mA.
From: Fairchild SUPER BRIGHT T-1 3/4 LED Lamp Water Clear Datasheet
