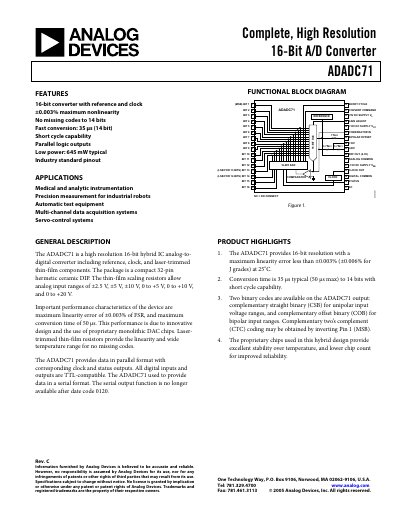

Analog Devices ADADC71 16-Bit A/D Converter Datasheet
The ADADC71 is a complete, high-resolution 16-bit A/D converter that includes an internal reference voltage, clock, and laser-trimmed thin-film components. It is housed in a compact 32-pin hermetic ceramic DIP package. The device features innovative design with proprietary monolithic DAC chips to ensure excellent stability over temperature.
Read onlineAnalog Devices ADADC71 specifications
| Resolution | 16 Bits |
|---|---|
| Maximum Linearity Error | ±0.003% of FSR |
| Power Consumption | 645 mW typical |
Source: Analog Devices ADADC71 16-Bit A/D Converter Datasheet
All Analog Devices ADADC71 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the available analog input voltage ranges?
The device supports bipolar ranges of ±2.5 V, ±5 V, and ±10 V, as well as unipolar ranges of 0 to +5 V, 0 to +10 V, and 0 to +20 V.
Is the serial output function available?
No, the serial output function is no longer available after date code 0120; data is provided in parallel format.
What is the maximum linearity error for these converters?
The maximum linearity error is +0.003% of FSR for K, B, and J grades.
From: Analog Devices AD ADC71/AD ADC72 A/D Converter Datasheet
Do these converters have missing codes?
No, they are specified as having no missing codes to 14 bits at 25°C.
From: Analog Devices AD ADC71/AD ADC72 A/D Converter Datasheet
What is the typical conversion time for 14‑bit operation?
The ADADC71 converts 14 bits in about 35 µs typical and up to 50 µs maximum.
What input voltage ranges does the ADADC71 support?
It supports bipolar ranges of ±2.5 V, ±5 V, ±10 V and unipolar ranges of 0‑5 V, 0‑10 V, and 0‑20 V.
