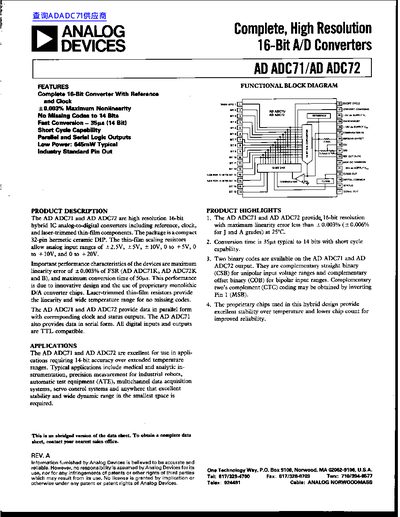

The Analog Devices AD ADC71 and AD ADC72 are high resolution 16-bit hybrid IC analog-to-digital converters that include a reference, clock, and laser-trimmed thin-film components. They feature a compact 32-pin hermetic ceramic DIP package and provide data in both parallel and serial logic outputs compatible with TTL standards.
These devices offer excellent stability over temperature with a maximum linearity error of +0.003% for K, B, and J grades. Key features include no missing codes to 14 bits at 25°C, fast conversion times of 35µs typical for 14-bit resolution, and low power consumption of 645mW typical.
| Resolution | 16 bits (max) |
|---|---|
| Conversion Time (14 bits) | 35µs typical |
| Power Consumption | 645 mW typical |
| Operating Temperature Range | -25 to +85 °C |
The maximum linearity error is +0.003% of FSR for K, B, and J grades.
No, they are specified as having no missing codes to 14 bits at 25°C.
The typical conversion time to 14 bits is 35µs.
