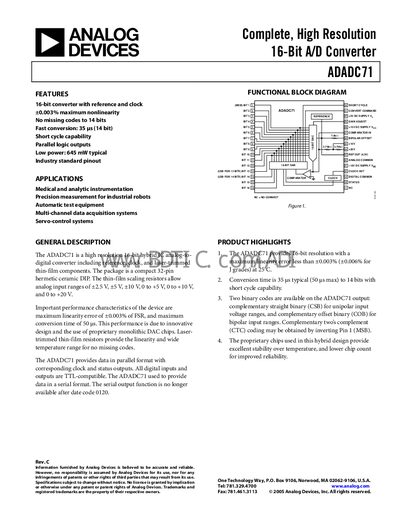

ADADC71 Rev. C is a complete, high-resolution 16-bit A/D converter with reference and clock. Its features include maximum nonlinearity of ±0.003%, no missing codes up to 14 bits, fast conversion speed, low power consumption, etc. The product is suitable for applications in medical and analytic instrumentation, precision measurement for industrial robots, automatic test equipment, multi-channel data acquisition systems, servo-control systems, etc.
The ADADC71 is a hybrid 16‑bit analog‑to‑digital converter that includes reference, clock, and thin‑film scaling resistors in a compact 32‑lead ceramic DIP. It provides parallel TTL‑compatible digital outputs and supports a variety of input voltage ranges for both unipolar and bipolar applications, making it suitable for medical instrumentation, industrial robots, test equipment, and data‑acquisition systems.
Key features include a typical conversion time of 35 µs for 14‑bit resolution, low power consumption (645 mW typical), industry‑standard pinout, and guaranteed no missing codes up to 14 bits. The device also offers short‑cycle capability, adjustable gain and offset, and an external clock option for slower conversion rates.
| Resolution | 16 Bits |
|---|---|
| Power Consumption | 645 mW typical, 850 mW max |
| Conversion Time (14 bits) | 35 µs typical, 50 µs max |
| No Missing Codes | Guaranteed to 14 bits |
| Clock Frequency | 400 kHz |
| Analog Supply Voltage | +15 V ±0.5 Vdc |
The ADADC71 converts 14 bits in about 35 µs typical and up to 50 µs maximum.
It supports bipolar ranges of ±2.5 V, ±5 V, ±10 V and unipolar ranges of 0‑5 V, 0‑10 V, and 0‑20 V.
Typical power consumption is 645 mW, with a maximum of 850 mW.
No, the device guarantees no missing codes up to 14‑bit resolution.
