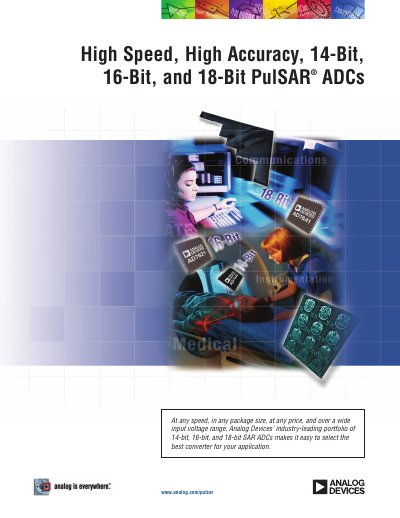

Analog Devices High Speed High Accuracy 14-Bit 16-Bit 18-Bit PulSAR ADCs Product Leaflet
Analog Devices presents its industry-leading portfolio of 14-bit, 16-bit, and 18-bit SAR ADCs, designed to provide uncompromised speed, accuracy, and low power consumption. The document highlights specific models like the AD7621 (16-bit, 3 MSPS) and the AD7641 (18-bit, 2 MSPS), emphasizing their suitability for applications in medical imaging, communications, and data acquisition.
Read onlineAnalog Devices AD7634 specifications
| Resolution (AD7621) | 16-bit |
|---|---|
| Throughput (AD7621) | 3 MSPS |
| Resolution (AD7641) | 18-bit |
| Throughput (AD7641) | 2 MSPS |
| Supply Voltage | 2.5 V |
| Package Options | 48-lead LQFP, 48-lead LFCSP |
Source: Analog Devices High Speed High Accuracy 14-Bit 16-Bit 18-Bit PulSAR ADCs Product Leaflet
All Analog Devices AD7634 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the fastest 16-bit SAR ADC in the portfolio?
The AD7621 is the fastest 16-bit SAR ADC, providing a 3 MSPS sampling rate.
From: Analog Devices High Speed High Accuracy 14-Bit 16-Bit 18-Bit PulSAR ADCs Product Leaflet
What is the highest resolution and speed offered?
The highest resolution is 18 bits at 2 MSPS, provided by the AD7641.
From: Analog Devices High Speed High Accuracy 14-Bit 16-Bit 18-Bit PulSAR ADCs Product Leaflet
What is the highest sampling rate of the AD7634?
The AD7634 can sample up to 670 kSPS in warp mode.
How much power does the AD7634 consume at its maximum speed?
At 670 kSPS in warp mode the device dissipates about 180 mW.
How much power does the AD7634 consume at its maximum speed?
At 670 kSPS (warp mode) the device dissipates about 180 mW.

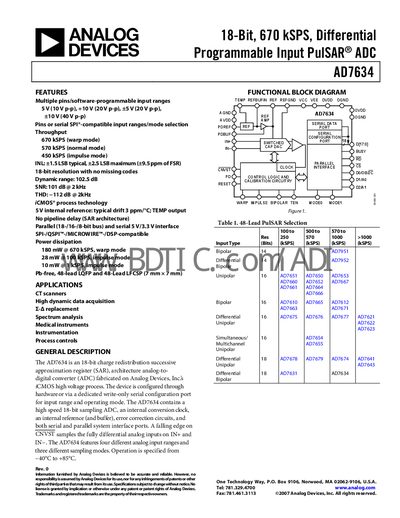

From: Analog Devices AD7634 18‑Bit 670 kSPS Differential Programmable Input PulSAR ADC Datasheet
What input voltage ranges are available?
Four programmable ranges are provided: 5 V (10 V p‑p), +10 V (20 V p‑p), +5 V (20 V p‑p), and +10 V (40 V p‑p).
From: Analog Devices AD7634 18‑Bit 670 kSPS Differential Programmable Input PulSAR ADC Datasheet
