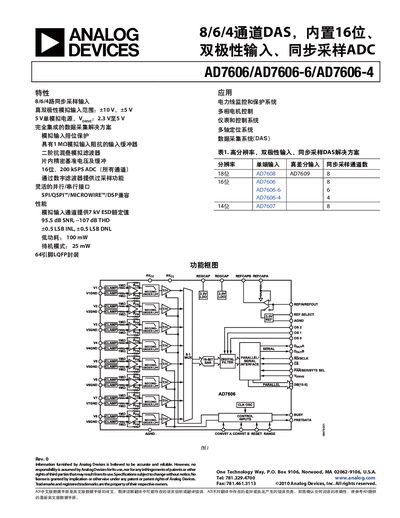

This document mainly introduces the data sheet of AD7606/AD7606-6/AD7606-4 8/6/4 channel, 16-bit, 200 kSPS ADC of ADI company.
The AD7606‑6 is a 16‑bit, 8‑channel synchronous sampling data‑acquisition system (DAS) with built‑in analog input protection, anti‑aliasing filters, a track‑hold amplifier, and flexible digital filtering. It operates from a single 5 V supply and supports true bipolar input ranges of ±10 V or ±5 V.
Key features include a 200 kSPS throughput per channel, 1 MΩ input impedance, low power consumption (80‑115 mW normal, 25‑42 mW standby), and parallel/serial digital interfaces such as SPI, Microwire, and DSP‑compatible modes. This manual is written in Chinese.
| Resolution | 16 bits |
|---|---|
| Sampling Rate | 200 kSPS per channel |
| Supply Voltage | 5 V single supply |
| Input Voltage Range | ±10 V, ±5 V (true bipolar) |
| Input Impedance | 1 MΩ |
| Power Consumption (normal static) | 80‑115.5 mW |
| Power Consumption (standby) | 25‑42 mW |
It supports true bipolar input ranges of +10 V and +5 V.
The device can sample up to 200 kSPS per channel.
The AD7606‑6 operates from a single 5 V supply.
Each analog input has an impedance of 1 MΩ.
