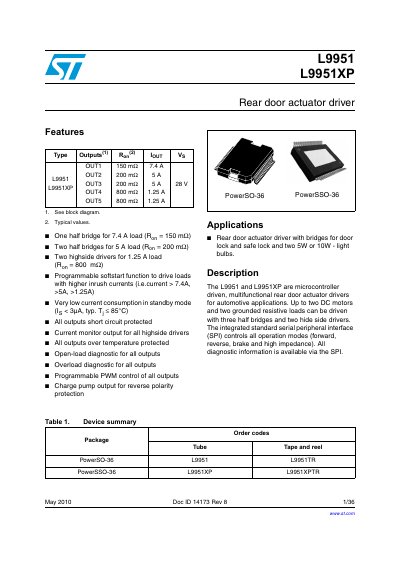

STMicroelectronics L9951/L9951XP Rear Door Actuator Driver Datasheet
The L9951 and L9951XP are microcontroller-driven, multifunctional rear door actuator drivers designed for automotive applications. These devices can drive up to two DC motors and two grounded resistive loads using three half bridges and two high-side drivers. Key features include short circuit protection, over-temperature protection, open-load diagnostics, and overload diagnostics for all outputs.
The devices offer programmable PWM control and a programmable softstart function to manage loads with higher inrush currents. They also include a current monitor output for high-side drivers and a charge pump output for reverse polarity protection. Operation is controlled via an integrated standard serial peripheral interface (SPI).
STMicroelectronics L9951 specifications
| Output 1 Current | 7.4 A |
|---|---|
| Output 2 Current | 5 A |
| Output 3 Current | 5 A |
| Output 4 Current | 1.25 A |
| Output 5 Current | 1.25 A |
| Standby Current | < 85 µA |
Source: STMicroelectronics L9951/L9951XP Rear Door Actuator Driver Datasheet
All STMicroelectronics L9951 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the applications for the L9951?
The L9951 is used as a rear door actuator driver with bridges for door lock, safe lock, and two 5W or 10W light bulbs.
From: STMicroelectronics L9951/L9951XP Rear Door Actuator Driver Datasheet
How many outputs does the L9951 have?
The L9951 has five outputs: three half bridges (OUT1, OUT2, OUT3) and two high-side drivers (OUT4, OUT5).
From: STMicroelectronics L9951/L9951XP Rear Door Actuator Driver Datasheet
What is the maximum current rating for a single half bridge output?
One half bridge can drive a load of up to 7.4A.
From: STMicroelectronics L9951 Door Actuator Driver Datasheet
What is the maximum current rating for two half bridges combined?
Two half bridges can drive a load of up to 5A.
From: STMicroelectronics L9951 Door Actuator Driver Datasheet
