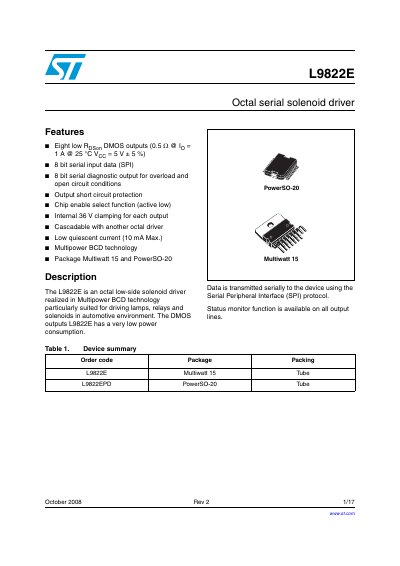

STMicroelectronics L9822E Octal Serial Solenoid Driver Datasheet
The L9822E is an octal low-side solenoid driver realized in Multipower BCD technology, specifically suited for driving lamps, relays, and solenoids in automotive environments. It features eight DMOS outputs capable of handling a nominal load current of 500mA with internal clamping up to 36V.
Data is transmitted serially using the Serial Peripheral Interface (SPI) protocol, allowing an external microcontroller to control all output lines individually. The device includes status monitor functions on all output lines for diagnostic purposes and offers chip enable select functionality.
STMicroelectronics L9822E specifications
| Number of outputs | Eight low Rpogon DMOS outputs |
|---|---|
| Logic supply voltage | Nominally 5V |
| Nominal load current | 500mA |
| Output short circuit protection limit | 1.05A minimum |
| Internal clamping voltage | About 36V |
| Turn-on delay (typical) | 10 us |
Source: STMicroelectronics L9822E Octal Serial Solenoid Driver Datasheet
All STMicroelectronics L9822E documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the interface protocol for the L9822E?
Data is transmitted serially to the device using the Serial Peripheral Interface (SPI) protocol.
From: STMicroelectronics L9822E Octal Serial Solenoid Driver Datasheet
What are the available package types?
The L9822E is available in Multiwatt 15 and PowerSO-20 packages.
From: STMicroelectronics L9822E Octal Serial Solenoid Driver Datasheet
What is the nominal load current for the L9822E outputs?
The nominal load current for these outputs is 500mA.
From: STMicroelectronics L9822E Octal Serial Solenoid Driver Datasheet
How does the device protect against inductive transients?
Each output has on-board clamps set at about 36V to clamp inductive load current.
From: STMicroelectronics L9822E Octal Serial Solenoid Driver Datasheet
