Start here

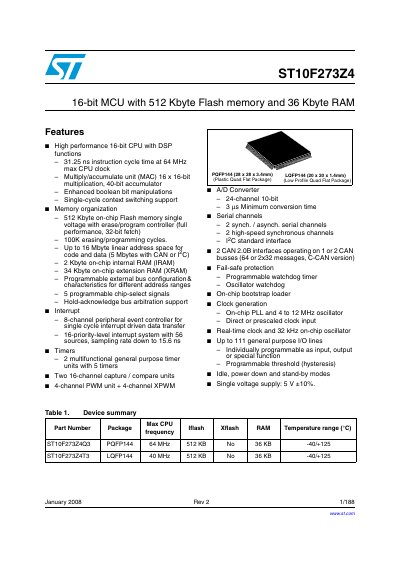

STMicroelectronics ST10F273Z4 16-bit MCU Datasheet
This document is a technical datasheet for the ST10F273Z4, a high-performance 16-bit microcontroller (MCU) manufactured by STMicroelectronics. The device features a 16-bit CPU with DSP functions, including a multiply/accumulate unit, and operates at a maximum frequency of 64 MHz. It is designed for applications requiring significant on-chip memory and flexible peripheral integration.
Read onlineSTMicroelectronics ST10F273Z4 specifications
| CPU Architecture | 16-bit MCU with DSP functions |
|---|---|
| Max CPU Frequency | 64 MHz |
| Flash Memory | 512 Kbyte |
| RAM Memory | 36 Kbyte |
| A/D Converter | 24-channel 10-bit |
| I/O Lines | Up to 111 |
| Operating Voltage | 5 V ±10% |
| Packages | PQFP144, LQFP144 |
All STMicroelectronics ST10F273Z4 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the maximum CPU clock frequency?
The maximum CPU clock frequency is 64 MHz.
How much on-chip Flash memory is available?
The device includes 512 Kbyte of on-chip Flash memory.
What is the main goal of this document?
To highlight the differences between the ST10F269Zx and the ST10F27324 devices for designers adapting applications.
From: AN2556 Porting ST10F269Zx to ST10F273Z4 Application Note
What are the hardware impacts on pin 17?
In the new device, pin 17 is a Vpp pin instead of requiring a decoupling capacitor.
From: AN2556 Porting ST10F269Zx to ST10F273Z4 Application Note
