STMicroelectronics STR73x Manuals

Key facts

Brand: STMicroelectronics
Model: STR73x
Category: microcontrollers
Documents: 3
Languages: EN
Last added: 2012-08-09

Start here

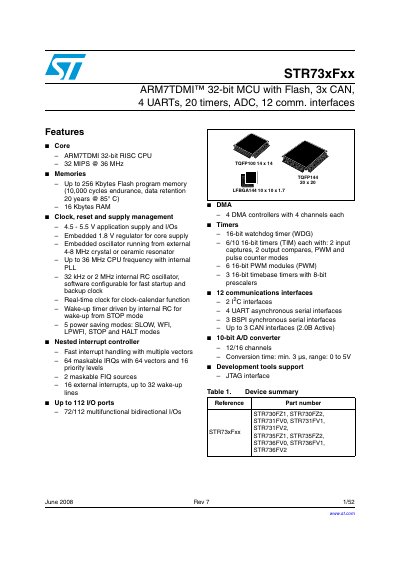

STMicroelectronics STR73xFxx MCU Datasheet

Datasheet 52 pages · 1.1 MB · EN

This document is a datasheet for the STR73xFxx family of ARM7TDMI 32-bit microcontrollers. The devices combine a high-performance CPU with extensive peripheral functions, including up to 3 CAN interfaces, 4 UARTs, and 12 communication interfaces. The family is available in TQFP144, LFBGA144, and TQFP100 packages with varying pin counts and feature sets.

Read online

STMicroelectronics STR73x specifications

CPU Core	ARM7TDMI 32-bit RISC CPU
CPU Frequency	Up to 36 MHz
Flash Memory	Up to 256 Kbytes
RAM	16 Kbytes
Operating Voltage	4.5 - 5.5 V
I/O Ports	Up to 112
Timers	6/10 16-bit timers
ADC Channels	12/16 channels
ADC Resolution	10-bit
ADC Conversion Time	min. 3 µs

Source: STMicroelectronics STR73xFxx MCU Datasheet

All STMicroelectronics STR73x documents by type

Datasheet 1

Ratings, dimensions and ordering codes, for selection and design work.

STMicroelectronics STR73xFxx MCU Datasheet 52 p

Application Note 2

How to use the product for one specific task, with worked examples.

Questions answered in these manuals

What is the function of the Low Power Voltage Regulator (LPVR)?

The LPVR provides a power supply of about 1.8V when the Main Voltage Regulator is switched off during low-power modes.

From: ST AN2202 Application Note

How can the Main Voltage Regulator (MVR) be switched off?

The MVR can be switched off when entering a low power mode by setting the VRLPW bit in the PRCCU_VRCTR register.

From: ST AN2202 Application Note

What condition enters the STR73x into SystemMemory Boot Mode?

The device enters this mode if the mode pins are configured with M0=0, M1=1 as the hardware reset pin transitions High at the end of a hardware reset.

From: STMicroelectronics AN2260 STR73x SystemMemory Boot Mode Application Note

What is the minimum baud rate for UART booting at 12MHz?

The minimum baud rate determined by the maximum count capacity of Timer Base 0 when measuring the zero byte is 1648, with the lowest standard Baud Rate being 2400.
