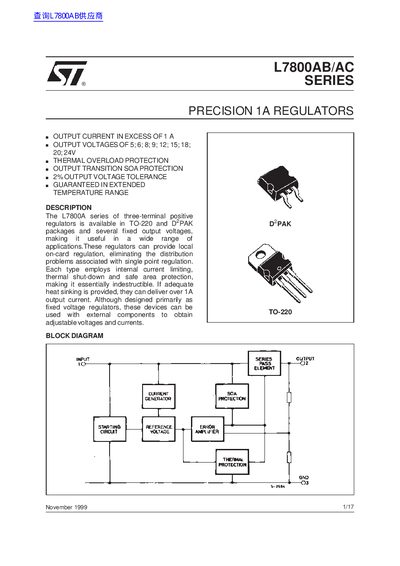

STMicroelectronics L7800AB/AC Series Precision 1A Regulators Handbook
The L7800AB/AC series are three‑terminal positive linear regulators offered in TO‑220 and DPAK packages with fixed output voltages of 5 V, 6 V, 8 V, 9 V, 12 V, 15 V, 18 V, 20 V and 24 V. They provide up to 1 A output current, internal current limiting, thermal shutdown and safe‑area protection, making them robust for a wide range of applications.
The document includes absolute maximum ratings, thermal resistance data, electrical characteristics for each voltage version, mechanical dimensions for the DPAK package, and ordering information. It also contains typical application circuits, test setups, and regulatory notices.
STMicroelectronics L7800AB specifications
| Output voltage tolerance | 2 % |
|---|---|
| Maximum input voltage (5‑18 V outputs) | 35 V |
| Maximum input voltage (20‑24 V outputs) | 40 V |
| Dropout voltage at 1 A | 2 V |
Source: STMicroelectronics L7800AB/AC Series Precision 1A Regulators Handbook
All STMicroelectronics L7800AB documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- STMicroelectronics L7800AB/AC Series Precision 1A Regulators Handbook 17 p
- STMicroelectronics L7800AB/AC Series Datasheet 21 p
- ST L7800AB/AC Series Datasheet 28 p
- ST L7800AB/AC Series Datasheet 17 p
- STMicroelectronics L7800AB/AC Series Datasheet 17 p
- ST L7800AB/AC Series Datasheet 28 p
- STMicroelectronics L7800AB/AC Series Datasheet 28 p
Questions answered in these manuals
What protection features are built into the L7800AB/AC regulators?
Each device includes internal current limiting, thermal shutdown, and safe‑area (SOA) protection.
From: STMicroelectronics L7800AB/AC Series Precision 1A Regulators Handbook
What is the typical dropout voltage at a 1 A load?
The dropout voltage is specified as 2 V when the regulator supplies 1 A.
From: STMicroelectronics L7800AB/AC Series Precision 1A Regulators Handbook
What is the maximum input voltage for the L7800AB/AC series?
The series can tolerate up to 35 V for output voltages 5‑18 V and up to 40 V for 20‑24 V output versions.
What is the storage temperature range of these regulators?
They are rated for storage from –65 °C to +150 °C.
What is the maximum output current of the L7800AB/AC regulators?
The regulators can deliver output current in excess of 1 A.
Which fixed output voltages are offered in the L7800AB/AC series?
The series provides fixed output voltages of 5 V, 6 V, 8 V, 9 V, 12 V, 15 V, 18 V, 20 V, and 24 V.
