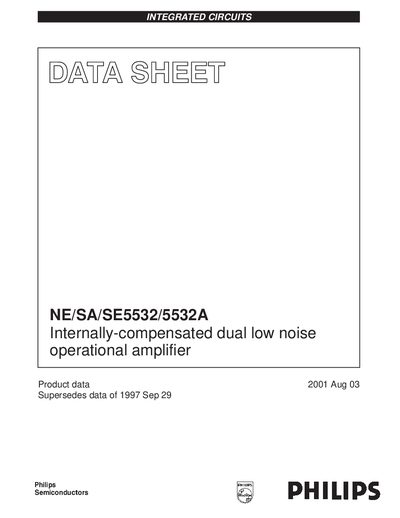

Philips NE/SA/SE5532/5532A Operational Amplifier Datasheet
The NE/SA/SE5532/5532A is a dual high-performance low noise operational amplifier designed for high-quality audio equipment, instrumentation, and control circuits. It offers improved output drive capability and considerably higher small-signal and power bandwidths compared to standard operational amplifiers like the 1458. The device is internally compensated for gains equal to one, with the 5532A version providing guaranteed noise voltage specifications for applications where very low noise is critical.
Read onlinePhilips SE5532 specifications
| Small-signal bandwidth | 10 MHz |
|---|---|
| DC voltage gain | 50000 |
| AC voltage gain | 2200 at 10 kHz |
| Power bandwidth | 140 kHz |
| Slew rate | 9 V/us |
| Supply voltage range | +3 to +20 V |
Source: Philips NE/SA/SE5532/5532A Operational Amplifier Datasheet
All Philips SE5532 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Is the 5532 internally compensated?
Yes, the op amp is internally compensated for gains equal to one.
From: Philips NE/SA/SE5532/5532A Operational Amplifier Datasheet
How much current can flow if the output is short-circuited to ground?
The output short circuit current ranges from a minimum of 10 mA to a maximum of 60 mA.
From: Philips NE/SA/SE5532/5532A Operational Amplifier Datasheet
Is the operational amplifier internally compensated?
Yes, the op amp is internally compensated for gains equal to one.
From: Philips NE/SA/SE5532/5532A Operational Amplifier Datasheet
What is the maximum differential input voltage?
The maximum differential input voltage rating is +0.5 V.
From: Philips NE/SA/SE5532/5532A Operational Amplifier Datasheet
Is the amplifier internally compensated?
Yes, the op amp is internally compensated for gains equal to one.
From: Philips NE/SA/SE5532/5532A Operational Amplifier Datasheet
What is the maximum supply voltage?
The absolute maximum supply voltage rating is +22 V.
