Start here

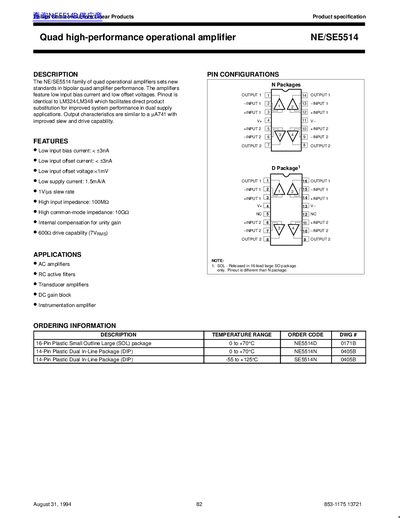

Philips NE/SE5514 Quad Operational Amplifier Datasheet
This document is a product specification datasheet for the Philips NE/SE5514 family of quad operational amplifiers. The device features low input bias current and offset voltages, with an output characteristic similar to the uA741 but offering improved slew rate and drive capability.
The datasheet provides absolute maximum ratings, electrical characteristics tables comparing SE5514 and NE5514 variants, and pin configuration diagrams for N (SOL) and D (DIP) packages. It also lists equivalent schematic information and ordering codes.
Philips SE5514 specifications
| Input bias current (Max) | <+3nA |
|---|---|
| Supply voltage (Max) | +16 V |
| Operating temperature range (SE5514) | -55 to +125 °C |
| Slew rate (Typ) | 1 V/us |
Source: Philips NE/SE5514 Quad Operational Amplifier Datasheet
All Philips SE5514 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum supply voltage for the NE/SE5514?
The absolute maximum rating for the supply voltage (Voc) is +16 V.
From: Philips NE/SE5514 Quad Operational Amplifier Datasheet
What are the typical applications for this amplifier?
Typical applications include AC amplifiers, RC active filters, transducer amplifiers, DC gain blocks, and instrumentation amplifiers.
From: Philips NE/SE5514 Quad Operational Amplifier Datasheet
What are the applications for the NE/SE5514?
The amplifier is suitable for AC amplifiers, RC active filters, transducer amplifiers, DC gain blocks, and instrumentation amplifiers.
From: Philips NE/SE5514 Quad Operational Amplifier Datasheet
Is the pinout compatible with the LM324?
Yes, the pinout is identical to the LM324/LM348, which facilitates direct product substitution.
From: Philips NE/SE5514 Quad Operational Amplifier Datasheet
