The 5532 is a dual high-performance low noise operational amplifier from Philips Semiconductors. Compared to most of the standard operational amplifiers, such as the 1458, it shows better noise performance, improved output drive capability and considerably higher small-signal and power bandwidths. This makes the device especially suitable for application in high-quality and professional audio equipment, instrumentation and control circuits, and telephone channel amplifiers.

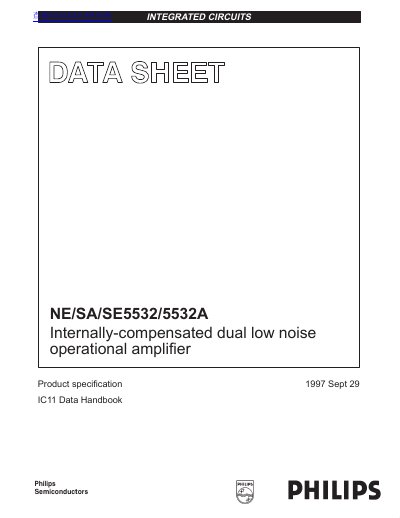

This document provides product data for the NE/SA/SE5532/5532A, an internally-compensated dual high-performance low noise operational amplifier. Compared to standard operational amplifiers like the 1458, this device offers better noise performance, improved output drive capability, and higher small-signal and power bandwidths.
| Small-signal bandwidth | 10 MHz |
|---|---|
| Input noise voltage | 5 nV/VHz (typical) |
| DC voltage gain | 50000 |
| AC voltage gain | 2200 at 10 kHz |
| Power bandwidth | 140 kHz |
| Slew rate | 9 V/us |
| Supply voltage range | +3 to +20 V |
Yes, the op amp is internally compensated for gains equal to one.
The maximum differential input voltage rating is +0.5 V.
The operating temperature range for the NE5532 is 0 to 70 °C.
