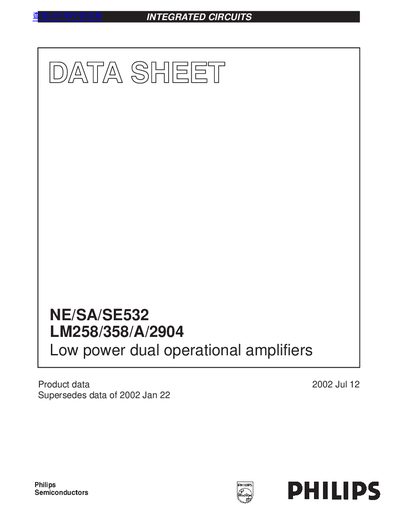

Philips NE/SA/SE532/LM258/358/A/2904 Low Power Dual Operational Amplifiers Datasheet
The document describes the NE/SA/SE532/LM258/358/A/2904 series of integrated circuits. These devices consist of two independent, high gain, internally frequency-compensated operational amplifiers designed to operate from a single power supply over a wide range of voltages or dual supplies.
Key features include an input common-mode voltage range that includes ground and the ability for the output voltage to swing to ground even when operated from a single supply. The devices offer large DC voltage gain, wide bandwidth, low supply current drain independent of supply voltage, and temperature-compensated unity gain crossover frequency.
Philips SE532 specifications
| Supply current drain (typical) | 400 uA |
|---|---|
| Large DC voltage gain | 100 dB |
| Unity gain bandwidth (typical) | 1 MHz |
| Single supply voltage range | 3 Vpc to 30 Voc |
| Dual supply voltage range | +1.5 Voc to +15 Voc |
| Input bias current (typical) | 45 nApc |
| Input offset voltage (typical) | 2 mVpc |
Source: Philips NE/SA/SE532/LM258/358/A/2904 Low Power Dual Operational Amplifiers Datasheet
All Philips SE532 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical supply current drain?
The typical supply current drain is 400 uA, which is essentially independent of the supply voltage.
From: Philips NE/SA/SE532/LM258/358/A/2904 Low Power Dual Operational Amplifiers Datasheet
Can these amplifiers operate from a single power supply?
Yes, they are designed specifically to operate from a single power supply over a wide range of voltages.
From: Philips NE/SA/SE532/LM258/358/A/2904 Low Power Dual Operational Amplifiers Datasheet
What is the maximum supply voltage for these amplifiers?
The absolute maximum supply voltage is 32 V (or +16 V) for the device.
From: Philips NE/SA/SE532 LM258/LM358/LM2904 Low Power Dual Operational Amplifiers Datasheet
What is the typical supply current consumption?
Typical supply current is about 400 µA, essentially independent of supply voltage.
From: Philips NE/SA/SE532 LM258/LM358/LM2904 Low Power Dual Operational Amplifiers Datasheet
How much supply current does the LM258/LM358/LM2904 draw?
Typical supply current drain is about 400 µA, essentially independent of the supply voltage.
From: Philips Semiconductor NE/SA/SE532 LM258/358/A/2904 DATA SHEET
What is the maximum output current the amplifiers can source or sink?
The maximum output current is approximately 40 mA, regardless of the supply voltage.
From: Philips Semiconductor NE/SA/SE532 LM258/358/A/2904 DATA SHEET
