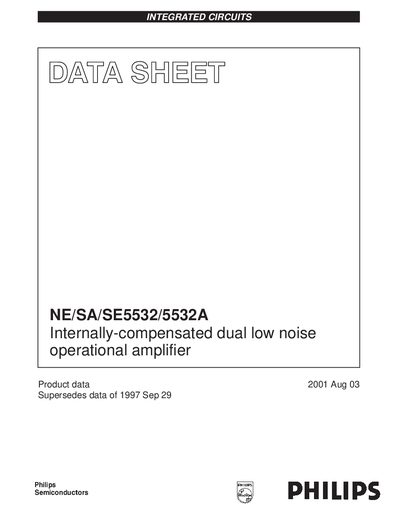

This document provides product data for the NE/SA/SE5532/5532A, an internally-compensated dual high-performance low noise operational amplifier. Compared to standard operational amplifiers like the 1458, this device offers superior noise performance, improved output drive capability, and higher small-signal and power bandwidths. It is specifically designed for high-quality audio equipment, instrumentation, control circuits, and telephone channel amplifiers.
| Small-signal bandwidth | 10 MHz |
|---|---|
| DC voltage gain | 50000 |
| AC voltage gain | 2200 at 10 kHz |
| Power bandwidth | 140 kHz |
| Slew rate | 9 V/us |
| Supply voltage range | +3 to +20 V |
Yes, the op amp is internally compensated for gains equal to one.
The absolute maximum supply voltage rating is +22 V.
