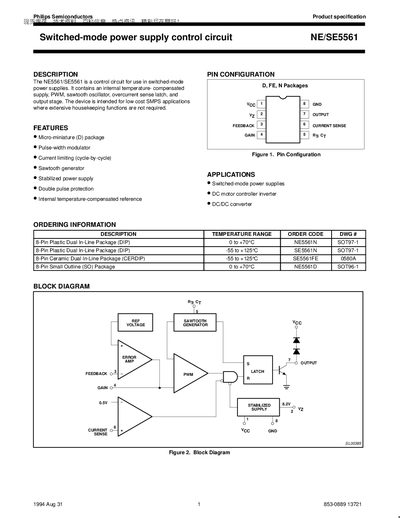

Philips NE/SE5561 Switched-Mode Power Supply Control Circuit Datasheet
The NE/SE5561 is a control circuit designed for low‑cost switched‑mode power supply applications. It integrates a temperature‑compensated reference, PWM, sawtooth oscillator, over‑current sense latch and output stage. The device is offered in several 8‑pin packages (DIP, CERDIP, SO) and supports both voltage‑forced and current‑fed operation.
Key specifications include a +18 V forced‑mode supply voltage, 40 mA maximum output current, 1.4 V output voltage, 98 % duty‑cycle capability and a 0.75 W power‑dissipation limit. The SE5561 version operates from –55 °C to +125 °C, while the NE5561 version covers 0 °C to +70 °C. Typical performance curves and start‑up guidelines are provided for designing reliable power converters.
Philips SE5561 specifications
| Supply voltage (forced mode) | +18 V |
|---|---|
| Output current | 40 mA |
| Output voltage | 1.4 V |
| Output duty cycle | 98 % |
| Maximum total power dissipation | 0.75 W |
| Operating temperature range (SE5561) | -55 °C to +125 °C |
Source: Philips NE/SE5561 Switched-Mode Power Supply Control Circuit Datasheet
All Philips SE5561 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the NE/SE5561 used for?
It is a control circuit for use in switched‑mode power supplies.
From: Philips NE/SE5561 Switched-Mode Power Supply Control Circuit Datasheet
Which package types are available for the NE/SE5561?
The device is offered in D, FE and N 8‑pin packages, including plastic DIP, ceramic DIP and small‑outline (SO) versions.
From: Philips NE/SE5561 Switched-Mode Power Supply Control Circuit Datasheet
What is the operating temperature range for the NE5561 version?
The NE5561 operates from 0 °C up to +70 °C.
From: Philips Semiconductors NE/SE5561 Switched-Mode Power Supply Control Circuit Datasheet
What is the maximum output current of the NE/SE5561?
The device can deliver up to 40 mA of output current.
From: Philips Semiconductors NE/SE5561 Switched-Mode Power Supply Control Circuit Datasheet
