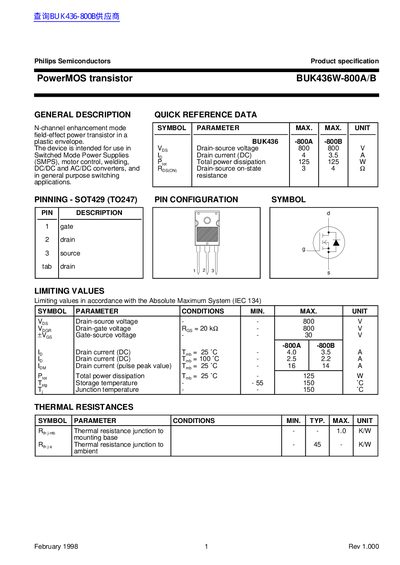

Philips Semiconductors BUK436W-800A/B PowerMOS Transistor Product Specification
This document is a product specification datasheet for the BUK436W-800A and BUK436W-800B, which are N-channel enhancement mode field-effect power transistors. The devices are packaged in a plastic SOT429 (T0247) envelope and are intended for use in switched mode power supplies, motor control, welding, DC/DC converters, and AC/DC converters.
Read onlinePhilips BUK436W-800A specifications
| Drain-source voltage (Vos) | 800 V |
|---|---|
| Total power dissipation (Prot) | 125 W |
| Package type | SOT429 (T0247) |
Source: Philips Semiconductors BUK436W-800A/B PowerMOS Transistor Product Specification
All Philips BUK436W-800A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum junction temperature?
The maximum junction temperature is 150 °C.
From: Philips Semiconductors BUK436W-800A/B PowerMOS Transistor Product Specification
What is the maximum total power dissipation at a junction temperature of 25°C?
The maximum total power dissipation is 125 W when the junction temperature (Tj) is 25°C.
From: Philips Semiconductors BUK436W-800A/B PowerMOS Transistor Product Specification
What is the maximum junction temperature?
The maximum junction temperature is 150 °C.
From: Philips Semiconductors PowerMOS transistor BUK436W-800A/B Product specification1
What is the maximum total power dissipation for this transistor at 25°C?
The maximum total power dissipation is 125 W when the temperature is 25°C.
From: Philips Semiconductors PowerMOS transistor BUK436W-800A/B Product specification1
