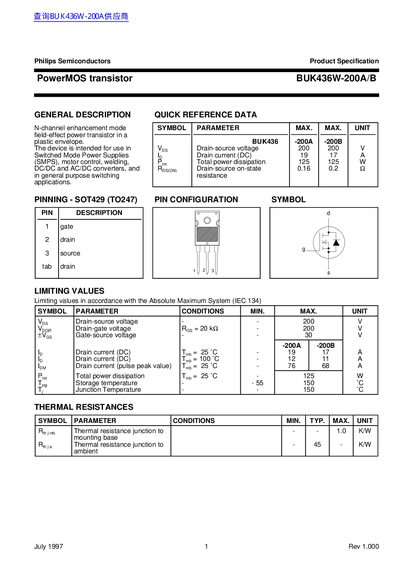

Philips BUK436W-200A/B PowerMOS Transistor Product Specification
This document is a product specification datasheet for the Philips BUK436W-200A/B PowerMOS transistor. The device is an N-channel enhancement mode field-effect power transistor designed for use in switched mode power supplies, motor control, welding, and general-purpose switching applications. It is packaged in a plastic envelope (SOT429 / T0247) with a tab connected to the drain.
Read onlinePhilips BUK436W-200A specifications
| Drain-source voltage | 200 V |
|---|---|
| Drain current (DC) | 19 A / 17 A |
| Total power dissipation | 125 W |
| Package type | SOT429 (T0247) |
| Junction temperature | 150 °C |
Source: Philips BUK436W-200A/B PowerMOS Transistor Product Specification
All Philips BUK436W-200A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum junction temperature?
The maximum junction temperature is 150 °C.
From: Philips BUK436W-200A/B PowerMOS Transistor Product Specification
What is the package type?
The transistor is available in a SOT429 (T0247) plastic envelope.
From: Philips BUK436W-200A/B PowerMOS Transistor Product Specification
What is the maximum junction temperature?
The maximum junction temperature (Tj) is 150 °C.
From: Philips Semiconductors BUK436W-200A/B PowerMOS Transistor Datasheet
What is the maximum total power dissipation at a junction temperature of 25°C?
The maximum total power dissipation is 125 W when the junction temperature (Tj) is 25°C.
From: Philips Semiconductors BUK436W-200A/B PowerMOS Transistor Datasheet
