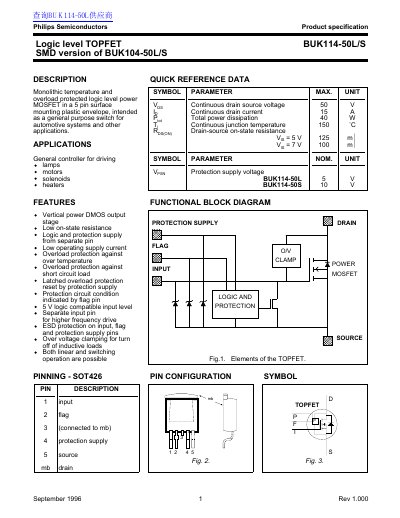

PHILIPS Logic level TOPFET BUK114-50L/S SMD version of BUK104-50L/S handbook
This document is a product specification datasheet for the Philips BUK114-50L/S, a monolithic temperature and overload protected logic level power MOSFET. It is available in an SMD version intended for use as a general-purpose switch in automotive systems and other applications, such as driving lamps, motors, solenoids, and heaters. The device features a 5-pin surface mounting plastic envelope.
Read onlinePhilips BUK104-50L specifications
| Continuous drain source voltage | 50 V |
|---|---|
| Continuous drain current | 15 A |
| Total power dissipation | 40 W |
| Protection supply voltage (BUK114-50L) | 5 V |
| Protection supply voltage (BUK114-50S) | 10 V |
Source: PHILIPS Logic level TOPFET BUK114-50L/S SMD version of BUK104-50L/S handbook
All Philips BUK104-50L documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the SMD version of the BUK104-50L/S?
The SMD version of the BUK104-50L/S is the BUK114-50L/S.
From: PHILIPS Logic level TOPFET BUK114-50L/S SMD version of BUK104-50L/S handbook
What is the maximum continuous drain current for this device at 25 °C?
The maximum continuous drain current is 15 A when the junction temperature is 25 °C.
From: PHILIPS Logic level TOPFET BUK114-50L/S SMD version of BUK104-50L/S handbook
Does this device include overload protection?
Yes, it includes overload protection against over temperature and short circuit loads.
What are the maximum continuous drain current and total power dissipation ratings?
The device supports a maximum continuous drain current of 15 A at an ambient temperature of 25 °C, with a total power dissipation limit of 40 W.
