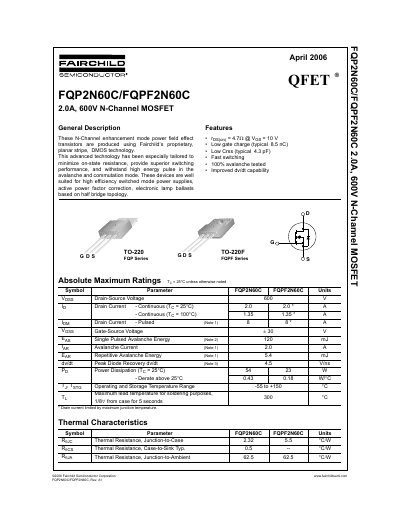

Fairchild FQP2N60C/FQPF2N60C 2.0A 600V N-Channel MOSFET Datasheet
The document describes the Fairchild FQP2N60C and FQPF2N60C N-Channel enhancement mode power field effect transistors. These devices utilize proprietary planar stripe, DMOS technology to minimize on-state resistance and provide superior switching performance. They are well-suited for high efficiency switched mode power supplies, active power factor correction, and electronic lamp ballasts based on half bridge topology.
The datasheet provides absolute maximum ratings, electrical characteristics, and typical characteristics for both the FQP2N60C and FQPF2N60C variants. It includes detailed information on thermal resistance, switching times, capacitance, and safe operating areas. Additionally, the document specifies package dimensions for the TO-220 and TO-220F packages.
Fairchild FQP2N60C specifications
| Drain-Source Voltage | 600 V |
|---|---|
| Continuous Drain Current (Tc = 25°C) | 2.0 A |
| Pulsed Drain Current | 8 A |
| Gate-Source Voltage | +30 V |
| Single Pulsed Avalanche Energy | 120 mJ |
| Power Dissipation (Tc = 25°C) | 54 W (FQP2N60C) |
| Operating and Storage Temperature Range | -55 to +150 °C |
| Thermal Resistance, Junction-to-Case | 2.32 °C/W (FQP2N60C) |
| Package Type | TO-220, TO-220F |
Source: Fairchild FQP2N60C/FQPF2N60C 2.0A 600V N-Channel MOSFET Datasheet
All Fairchild FQP2N60C documents by type
How to use the product for one specific task, with worked examples.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum drain-source voltage?
The maximum drain-source voltage is 600 V.
From: Fairchild FQP2N60C/FQPF2N60C 2.0A 600V N-Channel MOSFET Datasheet
What is the continuous drain current at 25°C?
The continuous drain current is 2.0 A at a case temperature of 25°C.
From: Fairchild FQP2N60C/FQPF2N60C 2.0A 600V N-Channel MOSFET Datasheet
What is the maximum drain‑source voltage rating?
The MOSFET is rated for a maximum drain‑source voltage of 600 V.
What is the typical gate charge of the device?
The typical gate charge is 8.5 nC.
