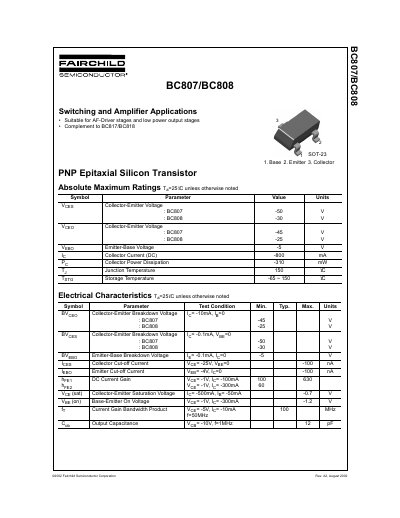

Fairchild BC807/BC808 PNP Epitaxial Silicon Transistor Datasheet
This document provides the design specifications for the Fairchild Semiconductor BC807 and BC808 series of PNP epitaxial silicon transistors. These devices are suitable for switching and amplifier applications, including AF-driver stages and low power output stages.
The datasheet details absolute maximum ratings such as collector-emitter voltage and collector current, along with electrical characteristics like DC current gain and frequency response. It also includes typical characteristic curves and physical package dimensions for the SOT-23 form factor.
Fairchild BC807 specifications
| Collector-Emitter Voltage (Max) | -50 V (BC807), -30 V (BC808) |
|---|---|
| Collector Current (DC) | -800 mA |
| Junction Temperature | 150 °C |
| DC Current Gain (Typ) | 630 |
Source: Fairchild BC807/BC808 PNP Epitaxial Silicon Transistor Datasheet
All Fairchild BC807 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the suitable applications for these transistors?
They are suitable for switching and amplifier applications, specifically AF-driver stages and low power output stages.
From: Fairchild BC807/BC808 PNP Epitaxial Silicon Transistor Datasheet
What is the package type for these transistors?
The transistors are available in a SOT-23 package.
From: Fairchild BC807/BC808 PNP Epitaxial Silicon Transistor Datasheet
What are the suitable applications for the BC807/BC808 transistors?
These transistors are suitable for switching and amplifier applications, including AF-driver stages and low power output stages.
From: Fairchild Semiconductor BC807/BC808 Transistor Datasheet
What is the maximum collector current rating for the BC807 and BC808 models?
The maximum collector current (DC) for both the BC807 and BC808 is -800 mA.
From: Fairchild Semiconductor BC807/BC808 Transistor Datasheet
