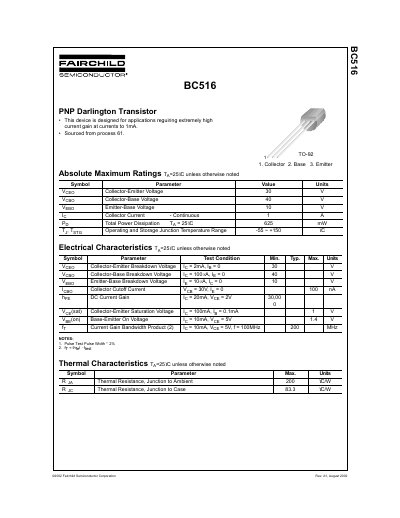

Fairchild BC516 PNP Darlington Transistor Datasheet
Datasheet 3 pages · 25 KB · EN
This document provides technical specifications for the Fairchild Semiconductor BC516 PNP Darlington Transistor. The device is designed for applications requiring extremely high current gain at currents up to 1mA. It features a TO-92 package with specific absolute maximum ratings, including a collector-emitter voltage of 30V and a total power dissipation of 625mW.
Read onlineFairchild BC516 specifications
| Collector-Emitter Voltage (VCEO) | 30 V |
|---|---|
| Collector-Base Voltage (VCBO) | 40 V |
| Emitter-Base Voltage (VEBO) | 10 V |
| Collector Current (Continuous) | 1 A |
| Total Power Dissipation | 625 mw |
| Operating and Storage Junction Temperature Range | -55 ~ +150 °C |
| DC Current Gain (hFE) | 30,000 |
