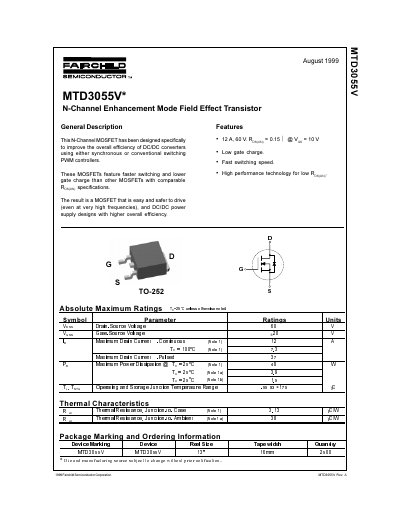

Fairchild Semiconductor MTD3055V N-Channel Enhancement Mode Field Effect Transistor Datasheet
This document is a datasheet for the Fairchild Semiconductor MTD3055V, an N-Channel Enhancement Mode Field Effect Transistor (MOSFET). It is designed to improve the efficiency of DC/DC converters using synchronous or conventional switching PWM controllers. Key features include a 12A current rating, 60V voltage rating, and a low on-resistance (RDS(ON)) of 0.15Ω.
Read onlineFairchild MTD3055V specifications
| Current Rating | 12 A |
|---|---|
| Voltage Rating | 60 V |
| On-Resistance (RDS(ON)) | 0.15 Ω |
| Gate Charge | Low |
| Switching Speed | Fast |
| Thermal Resistance (Junction-to-Ambient) | 38°C/W |
| Thermal Resistance (Junction-to-Ambient, Min Pad) | 96°C/W |
Source: Fairchild Semiconductor MTD3055V N-Channel Enhancement Mode Field Effect Transistor Datasheet
All Fairchild MTD3055V documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the primary application of the MTD3055V?
It is designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers.
From: Fairchild Semiconductor MTD3055V N-Channel Enhancement Mode Field Effect Transistor Datasheet
What are the key advantages of this MOSFET?
It features faster switching and lower gate charge than other MOSFETs with comparable RDS(ON) specifications.
From: Fairchild Semiconductor MTD3055V N-Channel Enhancement Mode Field Effect Transistor Datasheet
What is the maximum continuous drain current?
The maximum continuous drain current is 12 A.
From: Fairchild Semiconductor MTD3055VL N-Channel Logic Level Enhancement Mode MOSFET Datasheet
Is an external Zener diode required?
No, the rugged internal source-drain diode can eliminate the need for an external Zener diode transient suppressor.
From: Fairchild Semiconductor MTD3055VL N-Channel Logic Level Enhancement Mode MOSFET Datasheet
