Key facts
- Brand
- Fairchild
- Model
- BZX84C
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-06-11
Start here

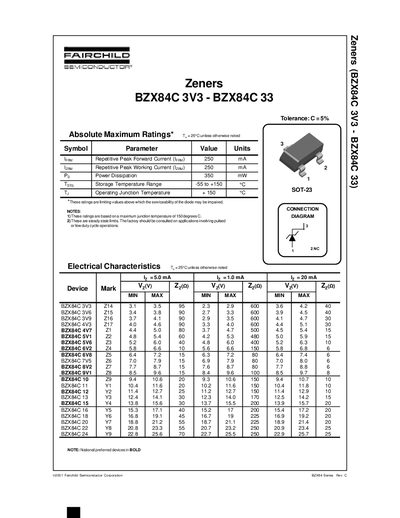

FAIRCHILD BZX84C 3V3 BZX84C 33 DATA SHEET
Datasheet 5 pages · 60 KB · EN
This document provides the design specifications for the BZX84C series of Zener diodes manufactured by Fairchild Semiconductor. It details the absolute maximum ratings, including power dissipation and operating temperature ranges, as well as electrical characteristics for various voltage ratings from 3.3V to 33V.
Read onlineFairchild BZX84C specifications
| Tolerance | 5% |
|---|---|
| Power Dissipation | 350 mW |
| Storage Temperature Range | -55 to +150 °C |
| Operating Junction Temperature | +150 °C |
All Fairchild BZX84C documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the tolerance for the BZX84C series?
The tolerance for the BZX84C series is 5%.
What is the maximum power dissipation?
The maximum power dissipation is 350 mW.
What is the tolerance class for the BZX84C series?
The tolerance is class C, which equals 5 %.
Are Fairchild BZX84C diodes approved for use in life‑support devices?
No, Fairchild’s products are not authorized for use as critical components in life‑support devices without written approval.
