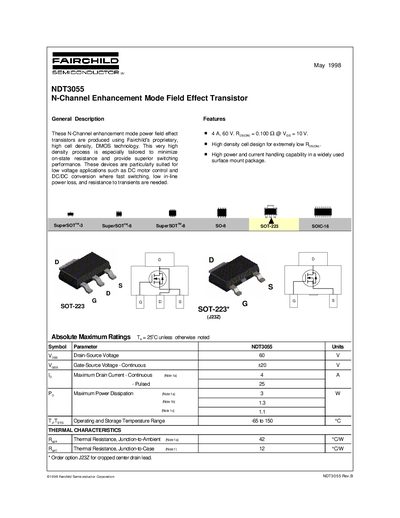

Fairchild NDT3055 N-Channel Enhancement Mode FET Datasheet
The document describes the Fairchild NDT3055, an N-Channel enhancement mode power field effect transistor produced using proprietary high cell density DMOS technology. It is designed to minimize on-state resistance and provide superior switching performance for low voltage applications such as DC motor control and DC/DC conversion.
The datasheet details absolute maximum ratings including a drain-source voltage of 60V, continuous drain current of 4A, and power dissipation up to 3W. It also lists electrical characteristics for off-state and on-state conditions, dynamic parameters like capacitance, switching times, and gate charge, as well as typical performance graphs.
Fairchild NDT3055 specifications
| Drain-Source Voltage | 60 V |
|---|---|
| Maximum Drain Current - Continuous | 4 A |
| Maximum Power Dissipation | 3 W |
| Operating and Storage Temperature Range | -65 to 150 °C |
| Thermal Resistance, Junction-to-Ambient | 42 °C/W |
| Static Drain-Source On-Resistance | 0.084 Ω |
| Input Capacitance | 250 pF |
