Key facts
- Brand
- Fairchild
- Model
- NDB6060
- Category
- Other Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-07-12
Start here

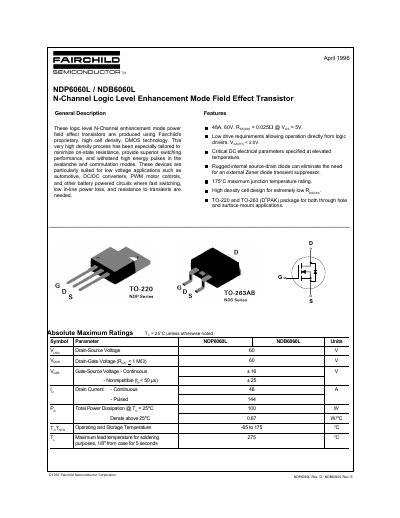

Fairchild NDP6060L/NDB6060L Datasheet
Datasheet 12 pages · 361 KB · EN
This document is a technical datasheet for the NDP6060L and NDB6060L, which are logic level N-Channel enhancement mode power field effect transistors. Produced using Fairchild's proprietary high cell density DMOS technology, these devices are designed to minimize on-state resistance and provide superior switching performance.
Read onlineFairchild NDB6060 specifications
| Drain Current (Continuous) | 48 A |
|---|---|
| Total Power Dissipation | 100 W |
| Maximum Junction Temperature | 175 °C |
| Drain-Source Voltage | 60 V |
All Fairchild NDB6060 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum continuous drain current for these transistors?
The device supports a continuous drain current of 48 A.
What are the maximum operating and storage temperatures?
The device operates and stores within a temperature range of -65 to 175 °C.
What is the maximum junction temperature rating?
The maximum junction temperature rating is 175°C.
Are these devices suitable for automotive applications?
Yes, they are particularly suited for low voltage applications such as automotive circuits.
