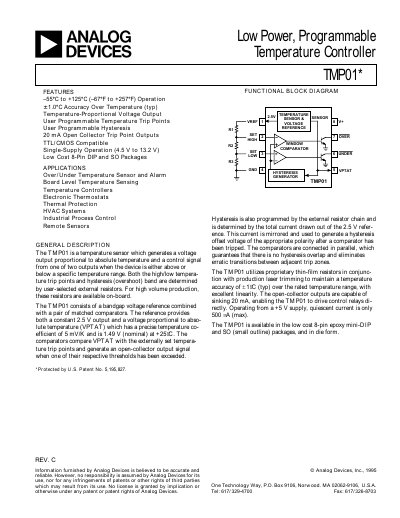

Analog Devices TMP01 Temperature Controller User Manual
The TMP01 is a low‑power, programmable temperature controller that provides a voltage output proportional to absolute temperature and two open‑collector trip‑point outputs. It operates from a single 4.5 V to 13.2 V supply, offers ±1 °C typical accuracy over its rated range, and includes user‑programmable set points and hysteresis via external resistors.
The document includes functional block diagrams, full electrical specifications, wafer‑test limits, absolute maximum ratings, ordering information, and application notes on programming the device, handling hysteresis, and minimizing error sources in heating or cooling systems.
Analog Devices TMP01 specifications
| Operating Temperature Range | -55°C to +125°C |
|---|---|
| Temperature Accuracy (Typical) | +1.0°C Over Temperature |
| Supply Voltage Range | 4.5 V to 13.2 V |
| Quiescent Current (Typical) | 500 pA at +5V |
| Output Low Voltage (20 mA) | 0.6 V max |
Source: Analog Devices TMP01* Temperature Controller Datasheet
All Analog Devices TMP01 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the typical temperature accuracy of the TMP01?
The device offers a +1.0°C accuracy over the rated temperature range.
From: Analog Devices TMP01* Temperature Controller Datasheet
Can the TMP01 drive control relays directly?
Yes, its open-collector outputs are capable of sinking 20 mA to drive relays.
From: Analog Devices TMP01* Temperature Controller Datasheet
What supply voltage range does the TMP01 support?
The device operates from a single supply of 4.5 V to 13.2 V.
From: Analog Devices TMP01 Temperature Controller User Manual
How much current can the open‑collector outputs sink?
Each open‑collector output can sink up to 20 mA continuously.
From: Analog Devices TMP01 Temperature Controller User Manual
How much current can the open‑collector outputs sink?
The open‑collector outputs can sink 20 mA continuously, with an absolute maximum rating of 50 mA.
What temperature range can the device operate in?
The device operates from –55 °C to +150 °C.
