Analog Devices ADF7023 Transceiver IC Datasheet
The ADF7023 is a low-power, high-performance, high-integration transceiver IC operating in the 862 MHz to 928 MHz and 431 MHz to 464 MHz frequency bands. It supports data rates from 1 kbps to 300 kbps and is suitable for applications such as smart metering, wireless MBUS, home automation, and wireless sensor networks. The device features a programmable RF output power range from -20 dBm to +13.5 dBm (single-ended PA) or +10 dBm (differential PA) and operates on a supply voltage of 2.2 V to 3.6 V. This manual is written in Chinese.
Read onlineAnalog Devices ADF7023 specifications
| Operating Frequency Bands | 862 MHz to 928 MHz, 431 MHz to 464 MHz |
|---|---|
| Supported Data Rates | 1 kbps to 300 kbps |
| Supply Voltage | 2.2 V to 3.6 V |
| RF Output Power (Single-ended PA) | -20 dBm to +13.5 dBm |
| RF Output Power (Differential PA) | -20 dBm to +10 dBm |
| Receiver Sensitivity (1.0 kbps, 2FSK, GFSK) | -116 dBm |
| Receiver Sensitivity (300 kbps, GFSK, GMSK) | -100 dBm |
| Sleep Current (32 kHz RC Oscillator) | 0.75 µA |
| Sleep Current (32 kHz XTAL Oscillator) | 1.28 µA |
| Deep Sleep Current | 0.33 µA |
| Package | 5 mm x 5 mm, 32-pin LFCSP |
All Analog Devices ADF7023 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What modulation formats does the ADF7023 support?
The device supports 2FSK, GFSK, OOK, MSK, and GMSK modulation formats.
What is the operating voltage range for the ADF7023?
The device operates on a supply voltage range of 2.2 V to 3.6 V.

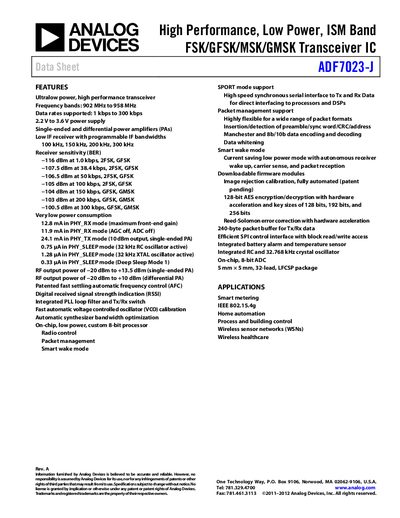

What frequency band does the ADF7023-J operate in?
It operates in the 902 MHz to 958 MHz ISM band.
What data‑rate range is supported by the ADF7023-J?
The transceiver supports data rates from 1 kbps up to 300 kbps.
What frequency bands does the ADF7023 operate in?
It operates in the 862 MHz‑928 MHz and 431 MHz‑464 MHz ISM bands.
What is the required supply voltage range?
The device works from 1.8 V to 3.6 V.
