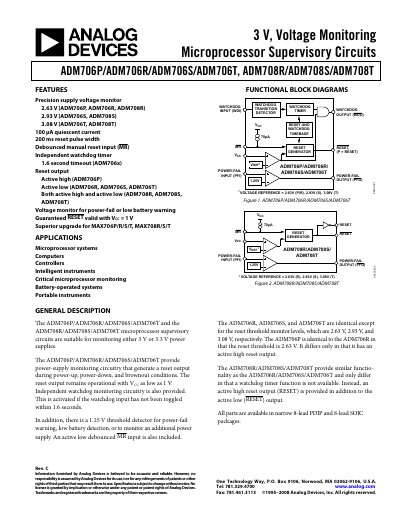

Analog Devices ADM706P/ADM706R/ADM706S/ADM706T, ADM708R/ADM708S/ADM708T Datasheet
The document describes the features, functions, and applications of the ADM706P/ADM706R/ADM706S/ADM706T and ADM708R/ADM708S/ADM708T microprocessor supervisory circuits. These devices are suitable for monitoring 3 V or 3.3 V power supplies, generating reset outputs during power-up, power-down, and brownout conditions, and remaining operational with supply voltages as low as 1 V.
Read onlineAnalog Devices ADM708 specifications
| Supply Current (Typical) | 100 μA |
|---|---|
| Reset Pulse Width | 200 ms |
| Watchdog Timeout Period (ADM706x) | 1.6 sec |
| Power-Fail Input Threshold | 1.25 V |
Source: Analog Devices ADM706P/ADM706R/ADM706S/ADM706T, ADM708R/ADM708S/ADM708T Datasheet
All Analog Devices ADM708 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the reset threshold for ADM706R?
The reset threshold is 2.63 V.
From: Analog Devices ADM706P/ADM706R/ADM706S/ADM706T, ADM708R/ADM708S/ADM708T Datasheet
What are the available package types?
All parts are available in narrow 8-lead PDIP and 8-lead SOIC packages.
From: Analog Devices ADM706P/ADM706R/ADM706S/ADM706T, ADM708R/ADM708S/ADM708T Datasheet
What is the minimum VCC that still guarantees a valid reset?
The device guarantees a valid reset level with VCC as low as 1 V.
From: Analog Devices ADM705/ADM706/ADM707/ADM708 Product Handbook
How long does the reset pulse stay active?
The reset pulse width is typically 200 ms.
From: Analog Devices ADM705/ADM706/ADM707/ADM708 Product Handbook
What is the reset pulse width for the ADM708?
The reset pulse width is 200 ms.
Which packages are available for the ADM708?
The ADM708 is offered in 8‑lead PDIP, 8‑lead SOIC, and 8‑lead MSOP packages.
