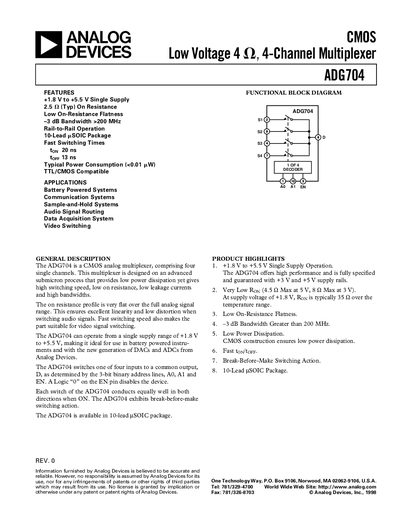

Analog Devices ADG704 CMOS Low Voltage 4-Channel Multiplexer Datasheet
The ADG704 is a CMOS analog multiplexer comprising four single channels, designed for low power dissipation and high switching speed. It operates from a single supply range of +1.8 V to +5.5 V, making it suitable for battery-powered systems, communication systems, and video switching applications. The device features a very flat on-resistance profile and exhibits break-before-make switching action.
Read onlineAnalog Devices ADG704 specifications
| On-Resistance (Typical) | 2.5 Ω |
|---|---|
| On-Resistance (Maximum) | 4.5 Ω |
| Bandwidth | >200 MHz |
| Operating Temperature Range | -40°C to +85°C |
| Package Type | 10-Lead mSOIC |
Source: Analog Devices ADG704 CMOS Low Voltage 4-Channel Multiplexer Datasheet
All Analog Devices ADG704 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Does the ADG704 feature break-before-make switching?
Yes, the ADG704 exhibits break-before-make switching action.
From: Analog Devices ADG704 CMOS Low Voltage 4-Channel Multiplexer Datasheet
What is the operating temperature range for the industrial version?
The industrial version operates from –40 °C to +85 °C.
From: Analog Devices ADG704 CMOS Low Voltage 4-Channel Multiplexer Datasheet
What supply voltage range does the ADG704 support?
The ADG704 operates from a single supply of +1.8 V to +5.5 V.
What is the typical on‑resistance of the ADG704?
The typical on‑resistance is about 2.5 Ω at VDD = 5 V.
What supply voltage range does the ADG704 support?
It operates from a single supply of +1.8 V to +5.5 V (or +3 V to +5.5 V for the B version).
How fast does the ADG704 switch?
Typical turn‑on time is about 20 ns and turn‑off time about 13 ns.
