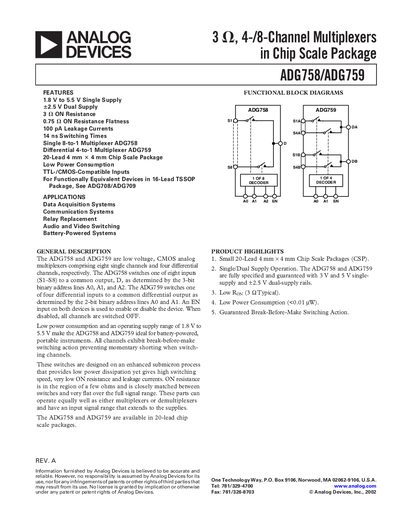

Analog Devices ADG758/ADG759 Datasheet
The ADG758 (8‑to‑1) and ADG759 (4‑to‑1 differential) are low‑voltage CMOS analog multiplexers offered in a 20‑lead chip‑scale package. They operate from a single 1.8 V–5.5 V supply or a dual‑supply configuration with +2.5 V rails, providing low on‑resistance, low leakage and fast switching for battery‑powered and portable instruments.
Key features include small 20‑lead CSP packaging, single/dual‑supply operation, typical on‑resistance of 3 Ω, switching times around 14 ns, and guaranteed break‑before‑make action. The devices are suitable for data‑acquisition, communication, audio/video switching, and relay replacement applications.
Analog Devices ADG758 specifications
| ON Resistance (Ron) typical | 3 Ω typ |
|---|---|
| Supply voltage (single) | 1.8 V to 5.5 V |
| Supply voltage (dual) | +2.5 V dual‑supply rails |
| Switching time | 14 ns typ |
| Leakage current (typical) | 0.01 nA typ |
| Input high voltage | 2.4 V min |
| Input low voltage | 0.8 V max |
| Package | 20‑lead chip‑scale package (CSP) |
| Operating temperature range | -40 °C to +85 °C |
All Analog Devices ADG758 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical ON resistance of the ADG758/ADG759?
The typical ON resistance is 3 Ω.
What is the maximum switching time for these multiplexers?
Typical switching time is 14 ns.
What supply voltage range does the ADG758/ADG759 support?
The devices operate from a single 1.8 V to 5.5 V supply or from a dual‑supply of +2.5 V and –2.5 V.
