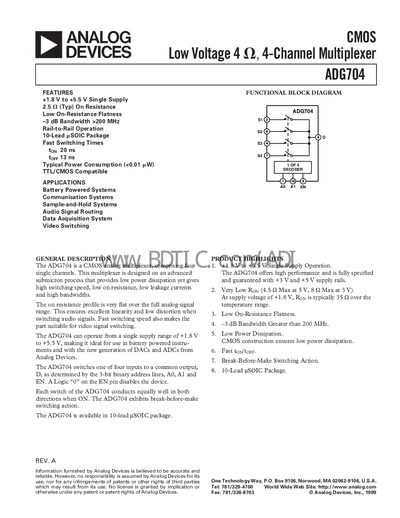

The ADG704 is a CMOS low voltage 4-channel multiplexer with features such as single supply voltage of +1.8 V to +5.5 V, low power consumption, high switching speed, low on-resistance, low leakage currents, and high bandwidth.
The ADG704 analog multiplexer from Analog Devices provides four single‑ended channels that can be switched to a common output under digital control. It operates from a single supply of +1.8 V to +5.5 V, making it suitable for battery‑powered instruments, communication systems, audio routing, and video switching.
The device features low on‑resistance (typical 2.5 Ω), fast switching times (ton ≈20 ns, toff ≈13 ns), high bandwidth (>200 MHz), and low leakage currents. It is offered in a 10‑lead uSOIC package and includes ESD protection.
| Supply Voltage Range | +1.8 V to +5.5 V |
|---|---|
| -3 dB Bandwidth | >200 MHz |
| Switching Time (ton) | ≈20 ns typ |
| Switching Time (toff) | ≈13 ns typ |
| Input High Voltage | 2.4 V min (5 V version) / 2.0 V min (3.3 V version) |
| Leakage Current (OFF, Source) | 0.01 nA typ |
It operates from a single supply of +1.8 V to +5.5 V (or +3 V to +5.5 V for the B version).
Typical turn‑on time is about 20 ns and turn‑off time about 13 ns.
The -3 dB bandwidth is greater than 200 MHz.
