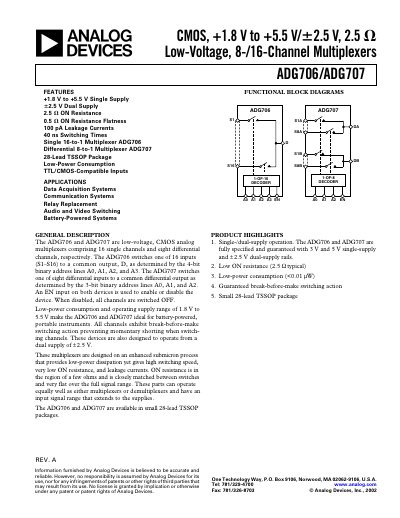

Analog Devices ADG706/ADG707 Datasheet
The ADG706 and ADG707 are low‑voltage CMOS analog multiplexers designed for battery‑powered instruments. The ADG706 provides a 16‑to‑1 single‑ended switch, while the ADG707 offers an 8‑to‑1 differential switch. Both devices operate from a single supply of 1.8 V to 5.5 V or a dual supply of ±2.5 V and feature break‑before‑make switching to prevent shorting.
These parts are supplied in a 28‑lead TSSOP package and include specifications such as typical ON resistance of 2.5 Ω, leakage currents in the femtoamp range, and switching times around 40 ns. They are suitable for data‑acquisition, communication, audio/video switching, and other portable applications.
Analog Devices ADG706 specifications
| Supply voltage range (single supply) | 1.8 V to 5.5 V |
|---|---|
| Typical ON resistance | 2.5 Ω typ |
| ON resistance match | 0.3 Ω typ |
| Leakage current (source OFF) | ±0.01 nA typ |
| Switching time (tTRANSITION) | 40 ns typ |
| Power consumption (IDD) | 0.001 µA typ |
| Operating temperature range | –40 °C to +85 °C |
All Analog Devices ADG706 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How low is the leakage current when the switch is off?
The source OFF leakage current is typically ±0.01 nA.
What is the switching speed of the device?
The typical transition time is 40 ns.
What supply voltage range do the ADG706 and ADG707 support?
They operate from a single supply of +1.8 V to +5.5 V or from a dual supply of +2.5 V.
How many channels does each device provide?
The ADG706 provides a 16‑to‑1 single‑ended multiplexer, while the ADG707 provides an 8‑to‑1 differential multiplexer.
