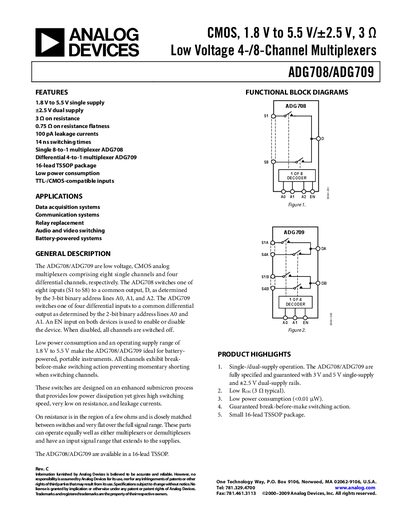

Analog Devices ADG708/ADG709 Datasheet Rev C
The ADG708 is an 8‑to‑1 single‑ended analog multiplexer, while the ADG709 is a 4‑to‑1 differential multiplexer. Both devices operate from a single 1.8 V to 5.5 V supply or from dual ±2.5 V rails, feature low on‑resistance (typical 3 Ω), low leakage currents (≈100 pA), and fast 14 ns switching. They are supplied in a compact 16‑lead TSSOP package and are designed for low power consumption (<0.01 pW).
Typical applications include data‑acquisition systems, communication equipment, relay replacement, audio/video switching, and battery‑powered portable instruments. The document provides detailed specifications, functional block diagrams, ordering information, and outline dimensions for design integration.
Analog Devices ADG709 specifications
| Supply Voltage (single) | 1.8 V to 5.5 V |
|---|---|
| Supply Voltage (dual) | +2.5 V dual supply |
| On‑Resistance (Ron) | 3 Ω typ |
| Leakage Current | 100 pA typ |
| Switching Time | 14 ns typ |
| Package | 16‑lead TSSOP |
| Power Consumption | <0.01 pW |
All Analog Devices ADG709 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage range do the ADG708/ADG709 support?
They operate from a single 1.8 V to 5.5 V supply or from dual ±2.5 V rails.
What is the typical on‑resistance of these analog switches?
The typical on‑resistance is 3 Ω.
What supply voltage range does the ADG708/ADG709 support?
The devices operate from 1.8 V to 5.5 V on a single supply, or with ±2.5 V dual‑supply rails.
What is the typical on‑resistance of these multiplexers?
The typical on‑resistance is about 3 Ω.
