Start here

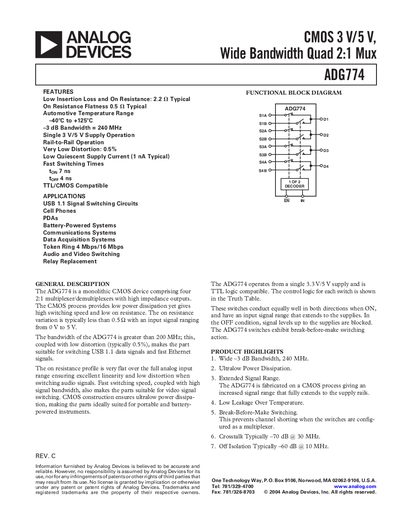

Analog Devices ADG774 Datasheet Rev C
The ADG774 is a monolithic CMOS quad 2:1 multiplexer/demultiplexer offering low on‑resistance, wide bandwidth, and ultra‑low power consumption. It operates from a single 3 V or 5 V supply and is TTL/CMOS compatible, making it suitable for USB, audio, video, and battery‑powered applications.
The document provides full electrical specifications, absolute maximum ratings, pin configuration, ordering guide, and typical performance graphs. It also includes application notes and revision history for engineers designing with this analog switch.
Analog Devices ADG774 specifications
| On Resistance (Ron) | 2.2 Ω typ |
|---|---|
| -3 dB Bandwidth | 240 MHz |
| Supply Voltage | Single 3 V/5 V |
| Source OFF Leakage Current | 0.01 nA typ |
| Input High Voltage | 2.0 V min |
| Input Low Voltage | 0.8 V max |
| Crosstalk | -70 dB @ 30 MHz |
| Off Isolation | -60 dB @ 10 MHz |
All Analog Devices ADG774 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical on‑resistance of the ADG774?
The typical on‑resistance is 2.2 Ω.
What supply voltage does the ADG774 require?
It operates from a single 3 V or 5 V supply.
What supply voltage does the ADG774 require?
The ADG774 operates from a single 3.3 V or 5 V supply.
What is the typical on‑resistance of the ADG774?
The typical on‑resistance is 2.2 Ω.
