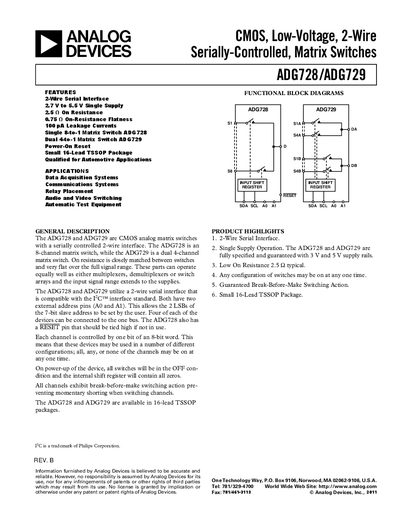

Analog Devices ADG728/ADG729 Datasheet
The ADG728 is an 8‑channel matrix switch and the ADG729 is a dual 4‑channel matrix switch. Both devices use a 2‑wire serial interface compatible with the ?’C™ standard and can operate from a single 2.7 V to 5.5 V supply. They feature closely matched on‑resistance, break‑before‑make switching, and are offered in a 16‑lead TSSOP package.
Key specifications include a typical on‑resistance of 2.5 Ω, leakage currents as low as 0.01 nA, a bandwidth of up to 100 MHz for the ADG729, and an operating temperature range of –40 °C to +85 °C. An automotive‑qualified version (ADG728W) is also available.
Analog Devices ADG729 specifications
| Supply Voltage Range | 2.7 V to 5.5 V |
|---|---|
| Typical On‑Resistance (Ron) | 2.5 Ω |
| On‑Resistance Flatness | 0.75 Ω typ |
| Leakage Current (OFF, source) | 0.01 nA typ |
| Maximum Continuous Current (ADG729) | 80 mA |
| Package | 16‑lead TSSOP (RU‑16) |
| Operating Temperature Range | –40 °C to +85 °C |
| Bandwidth (ADG729) | 100 MHz |
All Analog Devices ADG729 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage range does the ADG728/ADG729 support?
Both devices operate from a single supply of 2.7 V to 5.5 V.
How many channels does the ADG728 provide?
The ADG728 is an 8‑channel matrix switch.
What supply voltage range do the ADG728 and ADG729 support?
Both devices can be powered from a single supply between 2.7 V and 5.5 V.
How many ADG728 or ADG729 devices can share the same serial bus?
Up to four ADG728 devices and four ADG729 devices can be connected to the same 2‑wire serial bus, each with a unique address set by the AO and AL pins.
