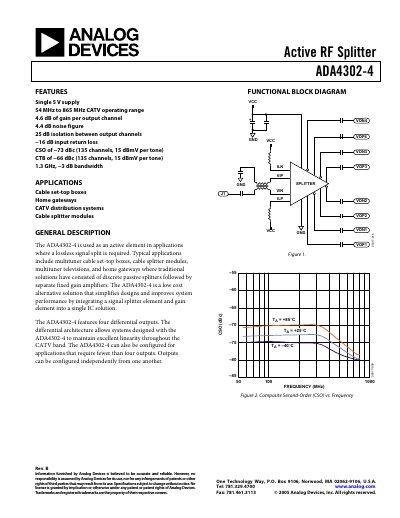

Analog Devices ADA4302-4 Active RF Splitter Datasheet
The document introduces the ADA4302-4 Active RF Splitter, designed for advanced TV and set-top box applications. It features differential architecture to maintain linearity throughout the CATV band and allows independent output configuration. The device is intended as an active element in multituner cable set-top boxes, cable splitter modules, advanced televisions, and home gateways.
Read onlineAnalog Devices ADA4302-4 specifications
| Supply Voltage | Single 5 V supply |
|---|---|
| Operating Frequency Range | 54 MHz to 865 MHz |
| -3 dB Bandwidth | 1.3 GHz |
| Gain per Output Channel | 4.6 dB |
| Noise Figure | 4.4 dB |
| Isolation between Output Channels | 25 dB |
Source: Analog Devices ADA4302-4 Active RF Splitter Datasheet
All Analog Devices ADA4302-4 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the ADA4302-4 used for?
It divides an input signal into four outputs without degrading the input signal quality.
What is the operating frequency range?
The device operates in a CATV range of 54 MHz to 865 MHz.
What is the nominal supply voltage for the ADA4302-4?
The device operates from a 5 V nominal supply voltage.
From: Analog Devices ADA4302-4 Active RF Splitter Datasheet Rev B
How much gain does the ADA4302-4 provide at 100 MHz?
It provides about 4.6 dB of gain (typical) at 100 MHz.
From: Analog Devices ADA4302-4 Active RF Splitter Datasheet Rev B
What supply voltage does the ADA4302-4 require?
The device operates from a nominal 5 V supply.
What is the maximum operating temperature of the ADA4302-4?
The device can operate up to +85 °C.
