Start here

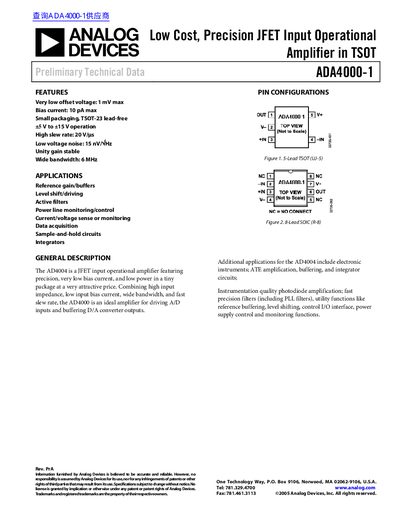

Analog Devices ADA4000-1 Operational Amplifier Datasheet
The document describes the ADA4000-1, a low cost, precision JFET input operational amplifier available in TSOT-23 and SOIC packages. It is designed for applications requiring high input impedance, such as driving A/D inputs and buffering D/A converter outputs.
Key features include a maximum offset voltage of 1 mV, a bias current of 10 pA max, unity gain stability, and a wide bandwidth of 6 MHz. The device operates with supply voltages from +5 V to +15 V.
Analog Devices ADA4000-1 specifications
| Offset Voltage (Max) | 1 mV |
|---|---|
| Bias Current (Max) | 10 pA |
| Slew Rate | 20 V/us |
| Voltage Noise Density | 15 nV/VHz |
| Bandwidth (GBP) | 6 MHz |
| Supply Voltage Range | +5 V to +15 V |
Source: Analog Devices ADA4000-1 Operational Amplifier Datasheet
All Analog Devices ADA4000-1 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum offset voltage for the ADA4000-1?
The maximum offset voltage is 1 mV.
From: Analog Devices ADA4000-1 Operational Amplifier Datasheet
What is the maximum bias current for the ADA4000-1?
The maximum bias current is 10 pA.
From: Analog Devices ADA4000-1 Operational Amplifier Datasheet
What is the maximum supply voltage for the ADA4000 series?
The devices operate from ±4 V up to ±18 V supply voltage.
From: Analog Devices ADA4000-1/ADA4000-2/ADA4000-4 Datasheet Rev A
What is the slew rate of the ADA4000‑1?
The slew rate is 20 V/µs.
From: Analog Devices ADA4000-1/ADA4000-2/ADA4000-4 Datasheet Rev A
What is the typical slew rate of the ADA4000 series?
The typical slew rate is 20 V/µs.
What is the gain‑bandwidth product of these amplifiers?
The gain‑bandwidth product is 5 MHz.
