Start here

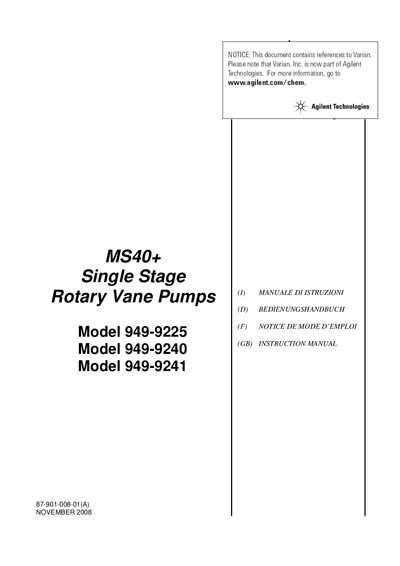

Agilent Technologies MS40 Plus Single Stage Rotary Vane Pumps 949-9225 User Manual
This manual covers all aspects of the Agilent MS40+ single‑stage rotary vane pump, including safety precautions, storage conditions, and required accessories. It explains how to unpack, install, connect to power and fluid lines, and start the pump safely.
Detailed sections describe routine operation, oil and filter cartridge replacement, electronic controller functions, communication interfaces, and troubleshooting. Technical data, dimensions, and specifications are provided for reference, along with a list of optional accessories and return procedures.
Agilent MS40 specifications
| Pumping Speed | 40 m³/h |
|---|---|
| Ultimate Total Pressure | 5x10⁻² mbar |
| Oil Capacity | 1 liter |
| Motor Rating | 0.75 kW |
| Noise Level | <62 dB(A) |
| Operating Temperature | 140 °F |
| Dimensions | 297 x 418 x 225 mm |
| Weight | 33 kg |
Source: Varian MS40+ Mono Stage Rotary Vane Pump Product Leaflet
All Agilent MS40 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Does the pump support universal voltage and frequency?
Yes, the inverter electronics enable truly universal voltage and frequency operation worldwide.
From: Varian MS40+ Mono Stage Rotary Vane Pump Product Leaflet
What interface capabilities does the pump offer?
The pump includes I/O and RS232/RS485 interfaces for remote diagnostics and control.
From: Varian MS40+ Mono Stage Rotary Vane Pump Product Leaflet
What temperature range is allowed for storage?
The pump can be stored from –20 °C up to +70 °C.
From: Agilent Technologies MS40 Plus Single Stage Rotary Vane Pumps 949-9225 User Manual
