Key facts
- Brand
- Agilent
- Model
- DB-35MS
- Industry
- Industrial
- Documents
- 6
- Languages
- ES · EN
- Last added
- 2012-07-09
Start here

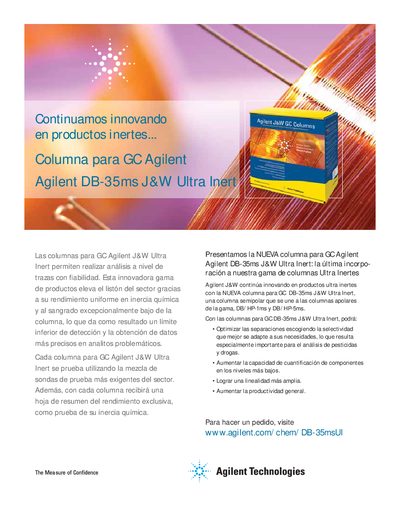

Agilent TechnologiesSpanish version - Agilent 1260 Infinity Purification Systems Infinitely better purity recovery guide
This document introduces the Agilent DB-35ms J&W Ultra Inert column, a new semi-polar addition to the Ultra Inert family. It is designed to provide uniform chemical inertness and exceptionally low bleed, resulting in lower detection limits and more precise data for problematic analytes. The column is tested using the industry's most demanding probe mix and includes a unique performance summary sheet. This manual is written in Spanish.
Read onlineAgilent DB-35MS specifications
| Column Type | Semi-polar |
|---|---|
| Dimensions (Example) | 15 m, 0.18 mm, 0.18 µm |
| Carrier Gas | Helium |
| Injection Mode | Splitless |
| Column Length Options | 20 m, 15 m, 30 m |
All Agilent DB-35MS documents by type
How to use the product for one specific task, with worked examples.
- Agilent DB-35ms and DB-XLB Columns Application Note 4 p
- Agilent DB-35ms and DB-XLB Columns Application Note 4 p
- Agilent J&W DB-35ms UI Ultra Inert GC Column Application Note 8 p
- Agilent J&W DB-35ms Ultra Inert GC Column Application Note for TSNA Analysis 6 p
- Agilent J&W DB-35ms Ultra Inert GC Column Application Note for Organophosphorus Pesticides in Apple Matrix 8 p
Questions answered in these manuals
What are the benefits of the DB-35ms J&W Ultra Inert column?
It allows for optimizing separations, increasing quantification capacity at low levels, achieving wider linearity, and increasing overall productivity.
Which analytes is this column particularly useful for?
The column is especially important for the analysis of pesticides and drugs.
What is the upper temperature limit for DB-35ms and DB-XLB columns?
Both columns have an upper temperature limit of 360°C.
Do these columns require extensive baking after installation?
No, a simple 1 to 2 hour conditioning period is typically adequate.
What is the total cycle time for CLP pesticide analysis?
The total cycle time is less than 15 minutes when using hydrogen carrier gas.
Which columns are used for phenoxy acid herbicides?
Phenoxy acid herbicides can be analyzed using the same DB-35ms and DB-XLB configuration.
