Key facts
- Brand
- Agilent
- Model
- ZORBAX Eclipse Plus C8
- Documents
- 3
- Languages
- EN
- Last added
- 2012-07-04
Start here

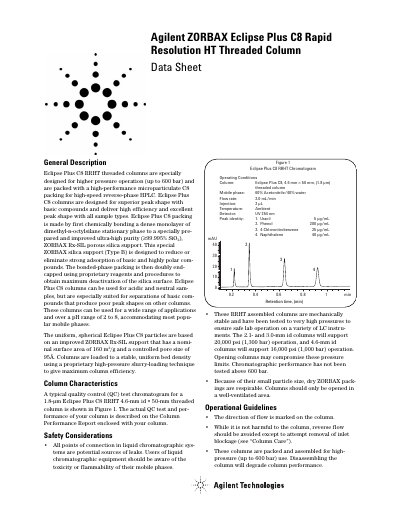

Agilent ZORBAX Eclipse Plus C8 Rapid Resolution HT Threaded Column Datasheet
The Agilent ZORBAX Eclipse Plus C8 Rapid Resolution HT threaded columns are engineered for high-pressure operation up to 600 bar. They feature a high-performance microparticulate C8 packing bonded to an ultra-high purity ZORBAX Rx-SIL porous silica support. This design ensures superior peak shape for basic compounds and delivers high efficiency across various sample types.
Read onlineAgilent ZORBAX Eclipse Plus C8 specifications
| Maximum operating pressure | 600 bar (9,000 psi) |
|---|---|
| Maximum operating temperature | 60 °C |
| pH range | 2 to 8 |
| Particle size | 1.8 um |
| Pore size | 95A |
Source: Agilent ZORBAX Eclipse Plus C8 Rapid Resolution HT Threaded Column Datasheet
All Agilent ZORBAX Eclipse Plus C8 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating pressure for these columns?
The maximum operating pressure is 600 bar (9,000 psi).
From: Agilent ZORBAX Eclipse Plus C8 Rapid Resolution HT Threaded Column Datasheet
What is the recommended pH range for use?
These columns are designed for use over a pH range of 2 to 8.
From: Agilent ZORBAX Eclipse Plus C8 Rapid Resolution HT Threaded Column Datasheet
What is the Eclipse Plus C8 column especially suited for?
It is especially suited for separating basic compounds that produce poor peak shapes on other columns.
What is the recommended storage solvent for long-term storage?
Long-term storage should be in a pure organic solvent, preferably an aprotic liquid such as 100% acetonitrile.
Can Eclipse Plus C8 columns reduce analysis time compared to C18?
Yes, the shorter aliphatic chain of the Eclipse C8 has less hydrophobic interaction with analytes, allowing it to cut analysis time in half compared to Eclipse Plus C18.
From: Agilent ZORBAX Eclipse Plus C8 Columns Application Note
What particle sizes are available for Eclipse Plus C8?
Eclipse Plus C8 is available in 1.8, 3.5 and 5 um particle sizes for all analytical, high-resolution, and fast LC analyses.
From: Agilent ZORBAX Eclipse Plus C8 Columns Application Note
