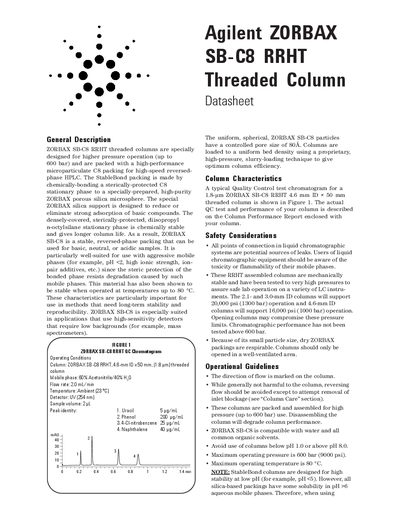

Agilent ZORBAX SB-C8 RRHT Threaded Column Datasheet
This document describes the Agilent ZORBAX SB-C8 RRHT threaded columns, which are engineered for high-pressure liquid chromatography (HPLC) operations up to 600 bar. The columns utilize StableBond technology, featuring a sterically-protected C8 stationary phase chemically bonded to high-purity ZORBAX porous silica microspheres. This design reduces the adsorption of basic compounds and provides enhanced stability against aggressive mobile phases, including those with low pH or high ionic strength, as well as elevated temperatures up to 80 °C.
Read onlineAgilent ZORBAX SB-C8 specifications
| Maximum operating pressure | 600 bar (9000 psi) |
|---|---|
| Maximum operating temperature | 80 °C |
| Particle size | 1.8 µm |
| Pore size | 80 Å |
| Compatible pH range | pH 1.0 to 8.0 |
All Agilent ZORBAX SB-C8 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the maximum operating pressure for these columns?
The maximum operating pressure is 600 bar (9000 psi).
Can these columns be used at high temperatures?
Yes, the columns are stable when operated at temperatures up to 80 °C.
What is the recommended column size for this separation?
The recommended column size is 4.6 x 75 mm.
From: Agilent ZORBAX SB-C8 Separation of Deoxy Ribonucleosides Application Note
What is the recommended flow rate for this separation?
The recommended flow rate is 2.0 mL/min.
From: Agilent ZORBAX SB-C8 Separation of Deoxy Ribonucleosides Application Note
Which column is used for separating antihistamines?
The ZORBAX StableBond C8 column is used for the separation.
What is the mobile phase composition?
The mobile phase consists of 10% acetonitrile and 90% 50mM KH2PO4 at pH 2.5.
