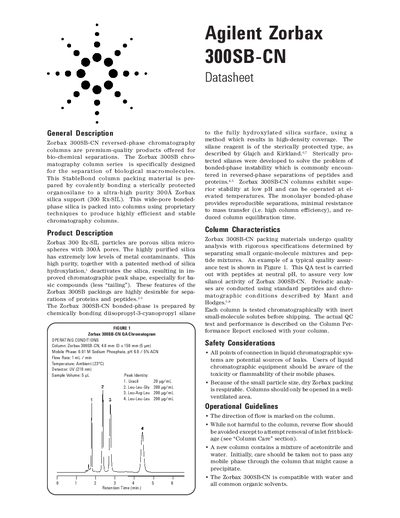

Agilent Zorbax 300SB-CN Datasheet
The Agilent Zorbax 300SB-CN is a premium-quality reversed-phase chromatography column series specifically designed for the separation of biological macromolecules, such as proteins and peptides. The column utilizes a StableBond column packing material prepared by covalently bonding a sterically protected organosilane to a ultra-high purity 300A Zorbax silica support. This proprietary technique produces highly efficient and stable chromatography columns with superior stability at low pH and elevated temperatures.
Read onlineAgilent ZORBAX 300 SB-CN specifications
| Maximum operating pressure | 400 bar (6000 psi) |
|---|---|
| Maximum recommended operating temperature | 80°C |
| Optimal pH range | pH 2 to 7 |
| Pore size | 300 Å |
All Agilent ZORBAX 300 SB-CN documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating pressure for Zorbax 300SB-CN columns?
The maximum operating pressure for these columns is 400 bar (6000 psi).
What is the recommended pH range for optimal column lifetime?
Maximum column lifetime is obtained when operating between pH 2 to 7.
What dimensions are specified for the ZORBAX 300 SB-C8 and SB-CN columns?
The manual specifies that both column types have dimensions of 4.6 x 150 mm.
From: Agilent ZORBAX 300 SB-C8 and SB-CN Stationary-Phase Selectivity Comparison
What is the flow rate used in the gradient separation conditions described?
The stated procedure uses a mobile phase flow rate of 1.0 mL/min.
From: Agilent ZORBAX 300 SB-C8 and SB-CN Stationary-Phase Selectivity Comparison
