Key facts
- Brand
- Agilent
- Model
- 6410 Triple Quadrupole Mass Spectrometer
- Documents
- 4
- Languages
- EN
- Last added
- 2012-07-04
Start here

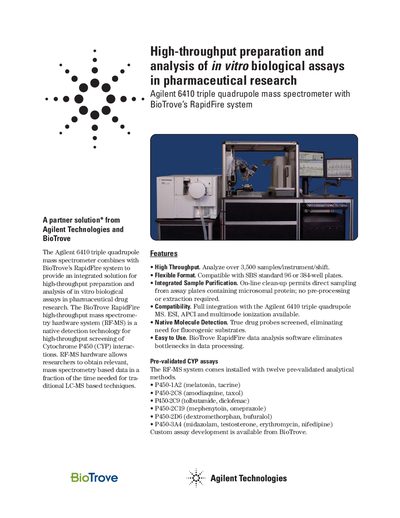

Agilent 6410 Triple Quadrupole Mass Spectrometer with BioTrove RapidFire System Product Leaflet
The Agilent 6410 triple quadrupole mass spectrometer combined with BioTrove's RapidFire system provides an integrated solution for high-throughput preparation and analysis of in vitro biological assays in pharmaceutical drug research. This native detection technology allows researchers to obtain mass spectrometry-based data in a fraction of the time needed for traditional LC-MS techniques, specifically for screening Cytochrome P450 (CYP) interactions.
Read onlineAgilent 6410 Triple Quadrupole Mass Spectrometer specifications
| Sample Throughput | Over 3,500 samples/instrument/shift |
|---|---|
| Plate Format | SBS standard 96 or 384-well plates |
| Sample Processing | On-line clean-up permits direct sampling |
| Ionization Modes | ESI, APCI and multimode |
| Weight | 170 kg (875 lbs) |
| Footprint | 152 x 183 x 76 cm (WxHxD) |
| Electrical Requirements | 115 V, 60 Hz, 15 AMP |
| Warranty | 1-year parts, labor and travel |
Source: Agilent 6410 Triple Quadrupole Mass Spectrometer with BioTrove RapidFire System Product Leaflet
All Agilent 6410 Triple Quadrupole Mass Spectrometer documents by type
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the throughput of the RF-MS system?
The system analyzes over 3,500 samples per instrument per shift.
From: Agilent 6410 Triple Quadrupole Mass Spectrometer with BioTrove RapidFire System Product Leaflet
Does the system require sample extraction?
No, on-line clean-up permits direct sampling from assay plates containing microsomal protein without pre-processing.
From: Agilent 6410 Triple Quadrupole Mass Spectrometer with BioTrove RapidFire System Product Leaflet
What is the limit of quantitation for this method?
The limits of quantitation were achieved at 50 pg/mg.
From: Agilent 6410 MS Application Note: Determination of Cocaine and Metabolites in Hair
Which drugs are analyzed in this procedure?
The method analyzes cocaine, benzoylecgonine, cocaethylene, and norcocaine.
From: Agilent 6410 MS Application Note: Determination of Cocaine and Metabolites in Hair
What equipment is used for the CYP450 inhibition assay?
The system uses an Agilent 6410 triple quadrupole mass spectrometer interfaced with a BioTrove RapidFire RF-MS inlet system.
From: Agilent 6410 Triple Quadrupole Mass Spectrometer CYP450 Inhibition Application Note
What software is used for data acquisition and analysis?
Data acquisition uses Agilent MassHunter workstation software, while final data analysis is performed using BioTrove RapidFire integrator software.
From: Agilent 6410 Triple Quadrupole Mass Spectrometer CYP450 Inhibition Application Note
