Start here

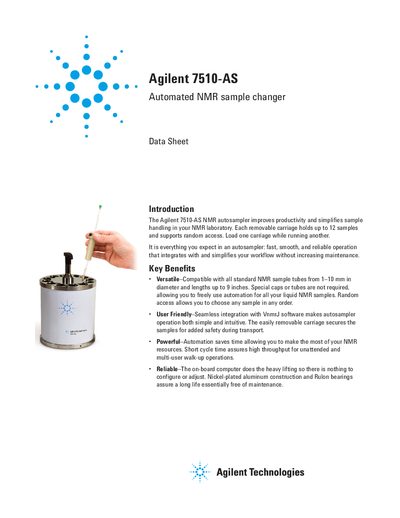

Agilent 7510-AS Automated NMR Sample Changer Data Sheet
The Agilent 7510-AS NMR autosampler is designed to improve productivity and simplify sample handling in NMR laboratories. It features a removable carriage that holds up to 12 samples and supports random access, allowing users to load one carriage while running another.
Read onlineAgilent 7510-AS specifications
| Compatible sample tube diameter | 1-10 mm |
|---|---|
| Maximum sample length | 9 inches (7 inches for J-Young) |
| Samples per carrier | 12 |
| Storage temperature | -25 °C to 55 °C |
| Relative humidity (operating/storage) | 20 to 80 % non-condensing |
| Maximum altitude | 3000 m |
| Pneumatics pressure | 448-689.5 kPa (65-100 psig) |
| Driver module weight | 2.2 kg (4.8 lb) |
| Carrier weight (unloaded) | 2.8 kg (6.1 lb) |
Source: Agilent 7510-AS Automated NMR Sample Changer Data Sheet
All Agilent 7510-AS documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum number of samples the removable carriage can hold?
Each removable carriage holds up to 12 samples.
From: Agilent 7510-AS Automated NMR Sample Changer Data Sheet
What is the maximum diameter of standard NMR sample tubes compatible with this changer?
It is compatible with standard NMR sample tubes up to 10 mm in diameter.
From: Agilent 7510-AS Automated NMR Sample Changer Data Sheet
Does the 7510-AS require routine maintenance?
No, it requires little routine maintenance and is designed to operate without adjustment.
From: Agilent 7510-AS Automated NMR Sample Changer Data Sheet
What computer systems are compatible with the autosampler?
It is compatible with Dell 755, T3400, T3500 or HP 2400 computers.
From: Agilent 7510-AS Automated NMR Sample Changer Data Sheet
