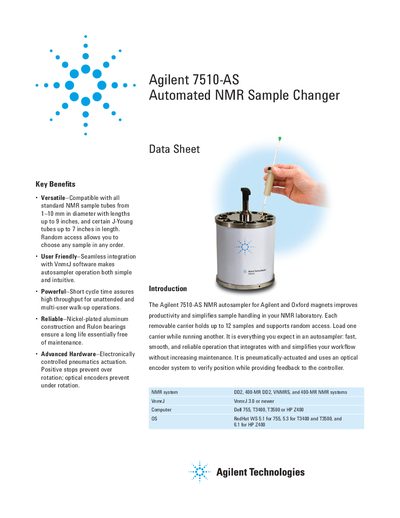

This document is the data sheet of Agilent 7510-AS NMR autosampler. This autosampler can be used for Agilent and Oxford magnets, which improves productivity and simplifies sample handling in your NMR laboratory. Each removable carrier holds up to 12 samples and supports random access. Load one carrier while running another. It is everything you expect in an autosampler: fast, smooth, and reliable operation that integrates with and simplifies your workflow without increasing maintenance. It is pneumatically-actuated and uses an optical encoder system to verify position while providing feedback to the controller.
The Agilent 7510-AS is an automated NMR sample changer designed to improve productivity and simplify sample handling in NMR laboratories. It features a removable carrier holding up to 12 samples with random access capabilities and integrates seamlessly with Vnmrd software for intuitive operation.
The device utilizes pneumatically actuated mechanisms with optical encoders for position verification, ensuring reliable and smooth performance. It is compatible with various Agilent and Oxford magnet systems and requires minimal routine maintenance as there are no user-serviceable parts.
| Compatible sample tube diameter | 1-10 mm |
|---|---|
| Maximum sample length | 9 inches (7 inches for J-Young) |
| Samples per carrier | 12 |
| Storage temperature | -25 °C to 55 °C |
| Relative humidity (operating/storage) | 20 to 80 % non-condensing |
| Maximum altitude | 3000 m |
| Pneumatics pressure | 448-689.5 kPa (65-100 psig) |
| Driver module weight | 2.2 kg (4.8 lb) |
| Carrier weight (unloaded) | 2.8 kg (6.1 lb) |
No, it requires little routine maintenance and is designed to operate without adjustment.
It is compatible with Dell 755, T3400, T3500 or HP 2400 computers.
Yes, the 7510-AS is CE compliant and tested to EN61326-1 and FCC standards.
