Key facts
- Brand
- Agilent
- Model
- Flow Tracker 1000
- Category
- Industrial Robot
- Documents
- 3
- Languages
- EN
- Last added
- 2012-07-04
Start here

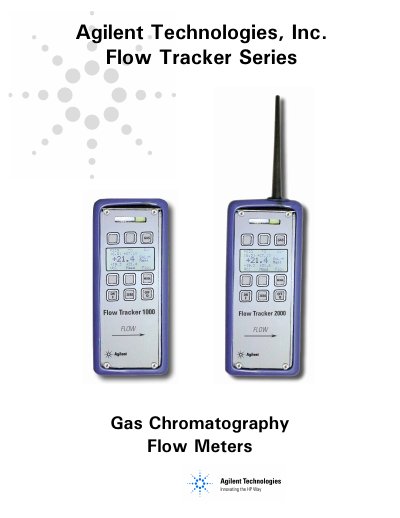

Agilent Flow Tracker 1000/2000-Detailed guide
The document provides a detailed guide for the Agilent Technologies Flow Tracker Series Gas Chromatography Flow Meters. It explains the operating principles based on laminar flow elements and covers installation, including connections and power requirements using AA batteries or an AC/DC adapter.
The manual details three main operating modes: Flow Mode for measuring volumetric and mass flow rates, GC Mode for gas chromatography applications involving linear velocity and capillary diameter, and Leak Detector Mode available on the 2000 series. It also includes instructions for RS-232 data output configuration.
Agilent Flow Tracker 1000 specifications
| Flow Range | 0-500 ml/min |
|---|---|
| Accuracy | Flow + 2% of reading (+ 0.2 ml/min) |
| Temperature Accuracy | +0.5°C |
| Pressure Accuracy | + 0.5% of reading |
| Maximum Pressure | 100 psi |
| Response Time | 1 second |
| Calibration Period | Two Years |
| Power | Six AA Batteries or optional universal AC power adapter |
| Dimensions | 8.30"(h) x 3.75'(w) x 1.90"(d) |
All Agilent Flow Tracker 1000 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What gases can the Flow Tracker measure?
The Flow Trackers are calibrated for Nitrogen, Hydrogen, Helium, Air, Carbon Dioxide, Methane, and 95% Argon / 5% Methane.
Which model includes leak detection?
Only the Flow Tracker 2000 includes the ability to identify leaks.
Which model includes leak detection?
The Flow Tracker 2000 includes leak detection capabilities, while the 1000 does not.
What gases can be calibrated?
The devices are calibrated for Nitrogen, Hydrogen, Helium, Air, Carbon Dioxide, Methane, and 95% Argon / 5% Methane.
What are the operating modes of the Flow Tracker?
The 1000 Series has two operating modes (Flow Mode and GC Mode), while the 2000 Series adds a Leak Detector Mode.
Can the Flow Tracker be used in hazardous locations?
No, this product is designed for indoor use only and should not be used in Hazardous Locations.
